Radio vs. TV Antenna Tuners: Understanding the Differences

antenna tuner
radio
television
impedance matching
rf

This article explores the differences between radio antenna tuners and TV antenna tuners. An antenna tuner, placed between the antenna and the transceiver (transmitter or receiver), matches the impedance of the transceiver to that of the antenna. This minimizes mismatches, ensuring optimal transmission and reception of electromagnetic signals. An antenna tuner is essentially a network of variable inductors (L) and capacitors (C). By adjusting these components, inductive and capacitive reactances can be canceled, matching the antenna impedance to that of the transceiver (typically 50 Ohms).

Radio Antenna Tuner

Radio Antenna Tuner

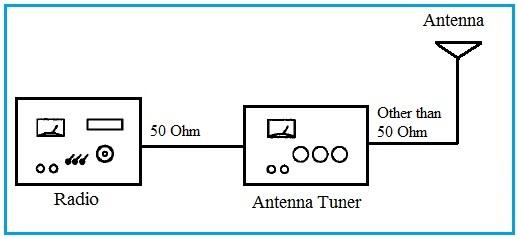

The antenna tuner used for radio applications is known as a radio antenna tuner. As shown in Figure 1, it sits between the radio unit and the antenna. The radio antenna is designed to pick up radio station frequencies.

A key parameter is the Standing Wave Ratio (SWR), which represents the ratio of the reflected wave to the forward wave. Ideally, SWR should be low for efficient transmission and reception with minimal reflections. The tuner reduces SWR, leading to improved sound quality from the radio due to the impedance matching between the antenna and the radio unit.

Antenna tuners are available in both manual and automatic versions. Manual tuners require manual adjustment of knobs to change L and C values. Automatic tuners, on the other hand, can be tuned with the push of a button, automatically setting L and C values based on the input frequency from the antenna, or they can adjust L/C values automatically based on the received frequency.

Low Frequency Tuner Circuit

Low Frequency Tuner Circuit

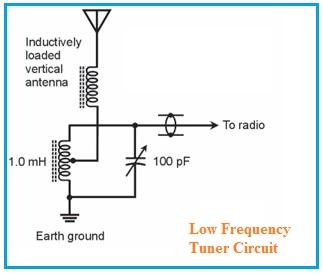

Figure 2 shows a low-frequency tuner circuit. It uses discrete inductors (L) and capacitors (C) and operates at lower frequencies. The values of L and C are determined based on the frequency to be tuned or received, using the following equation:

resonant frequency equation

f=12πLCf = \frac{1}{2\pi\sqrt{LC}}

For example, for a radio frequency of 500 kHz, an inductance of 1 mH and a capacitance of 100 pF would be needed in the tuner circuit.

L, Pi and T Type Antenna Tuner Circuits

L, Pi, T, Antenna Tuner Circuits

Figure 3 illustrates different tuner configurations: L-network, π-network, and T-network. The names are derived from their shapes. Inductors and capacitors are arranged as depicted.

TV Antenna Tuner

TV Antenna Tuner

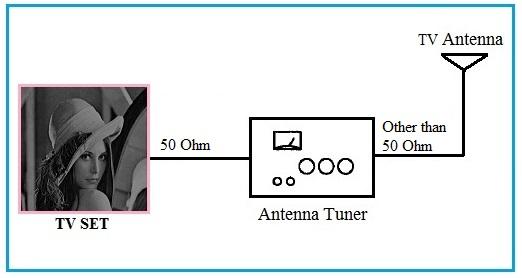

The antenna tuner used for television is known as a TV antenna tuner. As shown in Figure 4, it is positioned between the TV set and the antenna. The TV antenna is designed to receive TV channel frequencies.

Like radio tuners, TV antenna tuners are available in both manual and automatic types. A TV signal consists of both picture and sound.

The TV antenna tuner contains an RF amplifier (typically a Low Noise Amplifier or LNA), a mixer, and a Local Oscillator (LO). The tuner selects the TV channel frequency to be viewed. It also converts the modulated picture signal to an appropriate intermediate frequency (IF) as per the design. Typically, the LO frequency is higher than the incoming TV signal frequency by the IF value.

There are two main types of TV antenna tuners, differentiated by the TV bands they support: VHF tuners and UHF tuners. VHF antenna tuners typically utilize low-noise FET-based RF amplifiers and mixers. UHF antenna tuners generally employ GaAs FET-based RF amplifiers and mixers.

High Frequency Tuner Circuit

High Frequency Tuner Circuit

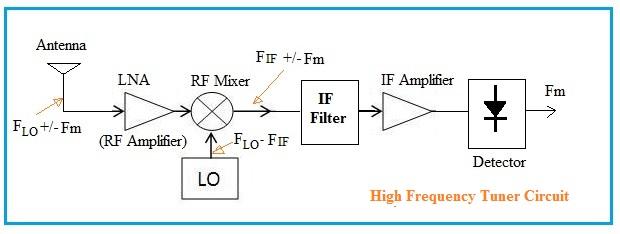

Figure 5 shows a high-frequency tuner circuit.

There are two primary types of receivers: Homodyne and Heterodyne.
