8 to 3 Encoder Without Priority: VHDL Code Implementation

This page provides VHDL source code for an 8 to 3 encoder without priority. You’ll find the block diagram and truth table, along with the VHDL code implementation.

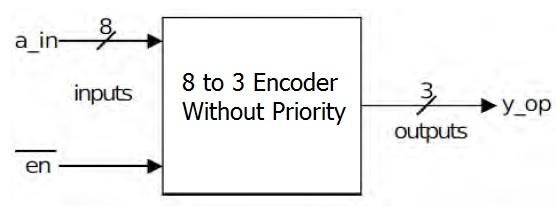

Block Diagram

Here’s the block diagram of the 8 to 3 encoder without priority:

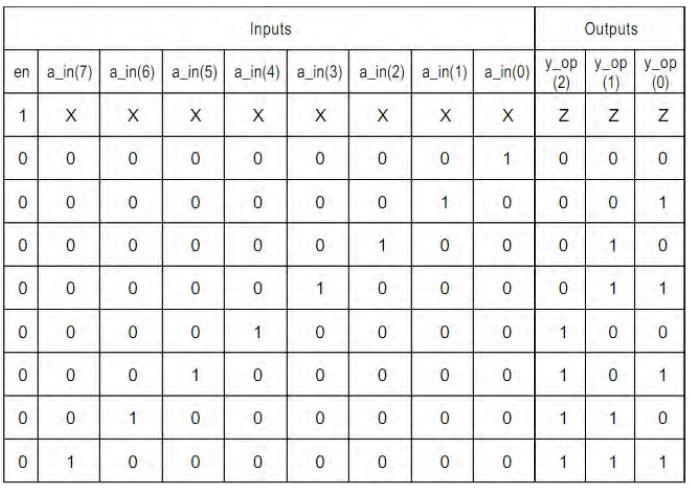

Truth Table

The truth table for the 8 to 3 encoder without priority is shown below:

8 to 3 Encoder Without Priority VHDL Code

library ieee;
use ieee.std_logic_1164.all;
use ieee.std_logic_arith.all;
use ieee.std_logic_unsigned.all;

entity encoder8_3 is
    port (
        en   : in  std_logic;
        a_in : in  std_logic_vector (7 downto 0);
        y_op : out std_logic_vector (2 downto 0)
    );
end encoder8_3;

architecture behavioral of encoder8_3 is
begin
    process (en, a_in)
    begin
        if (en = '1') then
            y_op <= "ZZZ"; -- High impedance when enable is high
        else
            case (a_in) is
                when "00000001" => y_op <= "000";
                when "00000010" => y_op <= "001";
                when "00000100" => y_op <= "010";
                when "00001000" => y_op <= "011";
                when "00010000" => y_op <= "100";
                when "00100000" => y_op <= "101";
                when "01000000" => y_op <= "110";
                when "10000000" => y_op <= "111";
                when others     => null; -- Do nothing if no input is asserted
            end case;
        end if;
    end process;
end;
