Understanding K-Factor in RF Amplifier Design

rf amplifier
k-factor
amplifier design
stability
s-parameters

The K-factor formula and its calculator are invaluable tools in the world of RF (Radio Frequency) amplifier design and analysis. In RF engineering, amplifiers are critical for boosting signal strength while preserving the signal’s integrity. The K-factor, also known as the gain compression factor, sheds light on how an amplifier’s gain changes with varying input signal levels.

Why is the K-Factor Important?

Let’s explore why the K-factor formula and its calculator are so useful:

  • Quantifies Nonlinearity: The K-factor tells us how much an amplifier deviates from being perfectly linear. It indicates how much the amplifier’s gain decreases as the input signal strength increases.
  • Predicts Performance: By using the K-factor formula and calculator, engineers can anticipate how an amplifier will behave under different operating conditions.
  • Enables Optimization: Amplifier designers can leverage the K-factor to fine-tune amplifier circuits and parameters for specific applications.
  • Facilitates Trade-Off Analysis: In amplifier design, there are often compromises to be made between gain, linearity, power consumption, and other factors. The K-factor provides a metric for evaluating these trade-offs.
  • Supports System-Level Design: Understanding the K-factor of individual amplifiers is essential for predicting the overall performance of a system. By incorporating K-factor analysis into system-level simulations, engineers can optimize the entire system for optimal performance.

RF K-Factor Calculator

Inputs

Outputs

Let’s look at an example:

INPUTS:

  • S11(magnitude, angle) = (0.2552, 156.2°)
  • S22(magnitude, angle) = (0.1544, -95.3°)
  • S12(magnitude, angle) = (0.0994, 41.5°)
  • S21(magnitude, angle) = (5.636, 53.1°)

OUTPUT:

  • RF Amplifier K-factor (Stability factor) = 1.0618

The RF Amplifier K-Factor Formula

The K-factor is calculated using all the S-parameters: S11, S12, S21, and S22. It represents the stability of the RF amplifier. When the K-factor is greater than 1, and Delta is less than 1, the RF amplifier is considered unconditionally stable for any load.

For more on amplifier stability conditions, refer to relevant resources.

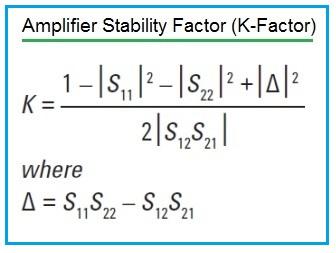

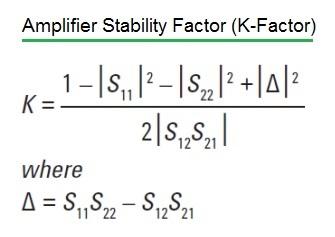

The following equation is used for the RF K-factor calculation, also known as the Rollet Stability Factor of the RF Power Amplifier.

RF k-factor or stability factor Formula

In Summary

The K-factor formula and its calculator are invaluable tools for RF amplifier design and analysis because they provide insights into gain compression, help predict amplifier performance, enable optimization, facilitate trade-off analysis, and support system-level design considerations. They allow engineers to design more robust and reliable RF amplifier systems.
