This article will guide you through the layout circuit design for a general-purpose RF Amplifier device, specifically the FSX017WF (GaAs FET). This device boasts a gain of 11 dB around 8GHz and a 1dB gain compression point of 21.5dB at 8GHz.

RF Simulation Circuit

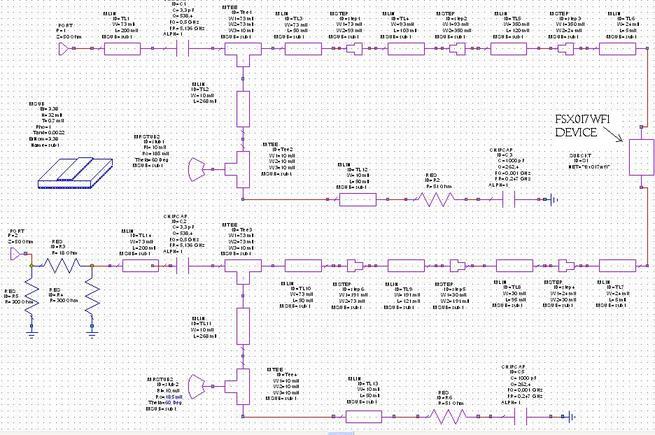

RF Amplifier Layout Circuit

The image above shows the RF simulation circuit used both before and after the device to create a layout for mounting the RF amplifier on a PCB. This design can be etched onto a dielectric substrate with a relative permittivity (εr) of 3.38. RF connectors should be appropriately mounted on port 1 and port 2 for proper RF signal coupling.

Substrate Specifications

Here are the specifications for the substrate used in this design:

Substrate SpecificationsValue
Relative Dielectric Constant (εr)3.38
Substrate thickness (H)32 mils
Conductor thickness (T)0.7 mils
Rho (Metal Bulk resistivity normalized to gold)1
Tand (Loss tangent of dielectric)0.0022

Results

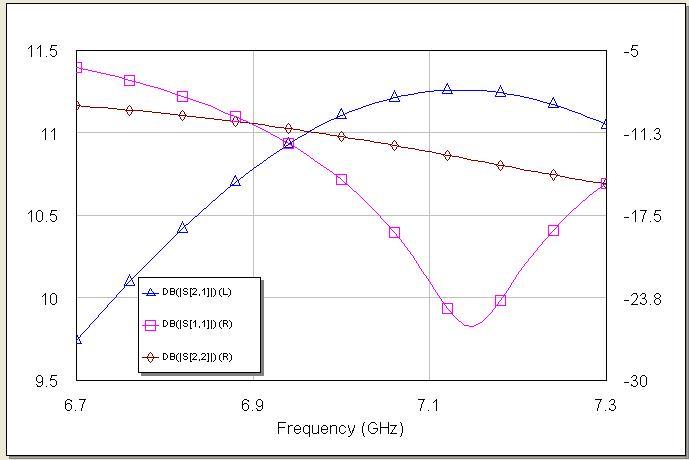

RF Amplifier Circuit Results

The figure illustrates the results of our RF amplifier design layout. The return loss, indicated by S11 and S22 values, is better than approximately -10.5dB. The gain value, represented by S21, is around 11dB, which aligns with the RF amplifier device’s datasheet specifications.

Layout Schematic

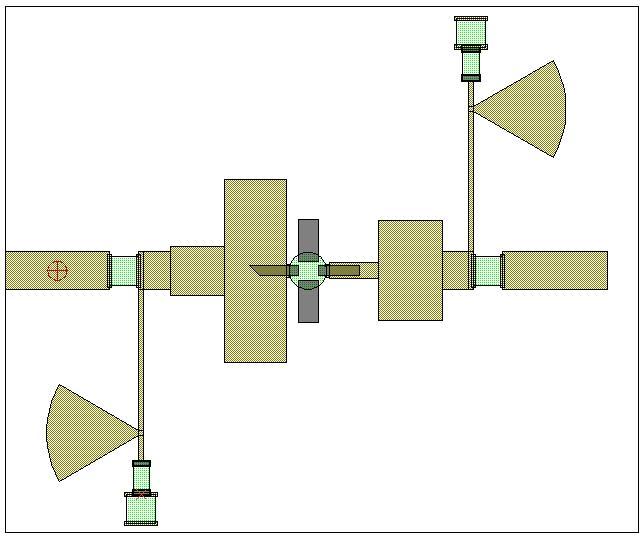

RF Amplifier Final Layout

This figure shows the final RF amplifier layout intended for etching onto the dielectric substrate, using the specifications outlined earlier.

Conclusion

Following this design layout, a mounting layout for any other RF amplifier can be created. It’s crucial to consider the specific mounting dimensions for the chosen RF amplifier.
