Understanding breakdown power is crucial for designing rectangular waveguides in high-power RF and microwave systems.

This page features a rectangular waveguide breakdown power formula and calculator, allowing you to determine the safe power handling capacity of waveguides with ease. It’s an invaluable tool for engineers and students working on advanced communication systems.

Inputs

Outputs

EXAMPLE:

  • Broad dimension (cm) = 2.3
  • Small dimension (cm) = 1.0
  • Frequency (GHz) = 9

Breakdown power (KW) = 946.24

Rectangular Waveguide Breakdown Power Formula

The waveguide is the hollow metallic structure used to carry EM waves from one point to another. The structure having a rectangular shape is referred to as a rectangular waveguide.

Power flow along the waveguide is given by the Poynting vector expression. Power transmitted in the waveguide is a function of the cross-sectional dimensions of the waveguide, as well as the cutoff frequency (fc) and the operating frequency of the waveguide. Hence, breakdown power also depends on these parameters.

The following equation or formula is used for the rectangular waveguide breakdown power calculator:

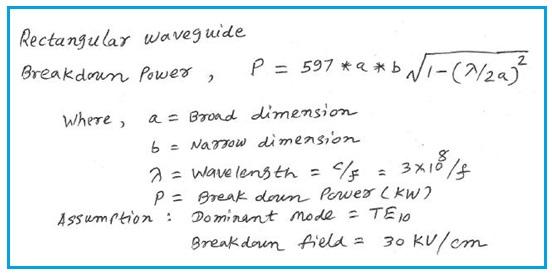

Rectangular Waveguide Breakdown Power Equation

Conclusion

Ensure the safety and efficiency of your waveguide systems with our rectangular waveguide breakdown power formula and calculator. Save this resource for accurate power limit calculations and streamline your RF design process effortlessly.
