For RF and microwave engineers, determining the cutoff frequency of circular waveguides is vital for efficient design. This page offers a circular waveguide cutoff frequency calculator and formula for TE and TM modes, enabling you to perform accurate and reliable calculations.

Whether you’re designing communication systems or studying waveguide theory, this tool simplifies the process for professionals and learners alike. The cutoff frequency of a circular waveguide is the minimum frequency at which a specific mode of electromagnetic wave can propagate through the waveguide. Below this frequency, the wave experiences significant attenuation and cannot effectively travel through the waveguide.

Waveguide Modes

Circular waveguides support different propagation modes, including TE (Transverse Electric) and TM (Transverse Magnetic).

  • TE Modes: Electric field has no component along the waveguide’s axis (e.g., TE11, TE21).
  • TM Modes: Magnetic field has no component along the waveguide’s axis (e.g., TM01, TM11).

Physical Dependence: The cutoff frequency is determined by the waveguide’s radius (a) and the specific mode of propagation. Larger waveguides have lower cutoff frequencies for the same mode, as they can support longer wavelengths.

Cutoff Frequency Formula

The cutoff frequency (fc) for a specific mode in a circular waveguide is given by the following equation:

  • fc = (Xm.n * C )/(2*π*a)

Where:

  • Xm.n: Root of the Bessel function for the specific mode.
  • C: Speed of light in vacuum (3 x 10^8 m/s)
  • a: Radius of the waveguide in meters

For efficient signal transmission, the operating frequency must be higher than the cutoff frequency. Frequencies lower than fc are evanescent and result in exponential decay of the wave’s amplitude.

Cutoff Frequency Calculation Example

Inputs

Outputs

Radius (Input) = 0.0135 meter Frequency = 6.5 GHz

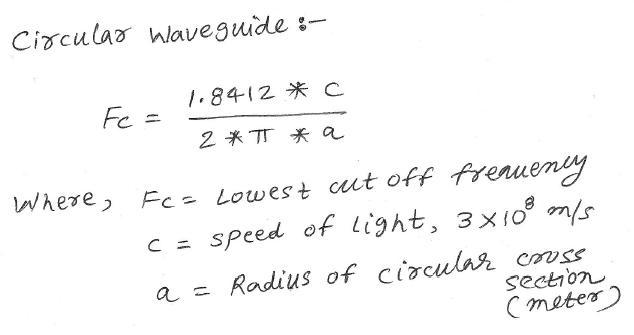

Circular Waveguide Cutoff Frequency Formula for TE11 Mode

The following equation is used for cutoff frequency calculation of circular waveguide.

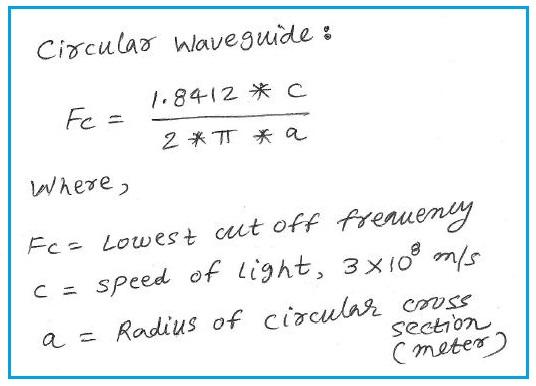

circular waveguide cutoff frequency

For TE11 mode in a circular waveguide with radius (a) of 2 cm, the Bessel root for X11 equals 1.841.

fc = 1.841 * 3 x 10^8 / 2 *π*0.02 fc = 4.39 GHz

Conclusion

Accurately determining the cutoff frequency for circular waveguides ensures high performance RF and microwave systems. Use this circular waveguide cutoff frequency formula and calculator to streamline your designs. Bookmark this tool for quick access and reliable calculations in future projects.
