In many electronic and RF systems, multiple components or stages (such as amplifiers, filters, and mixers) are cascaded together. These components introduce noise into the system. It’s essential to understand how the noise accumulates through the stages. The Cascaded Noise Figure formula and calculator help engineers analyze and design these systems while considering noise performance. Engineers use the formula to optimize the noise performance of a system. By carefully selecting components or adjusting their gain and noise figure, they can minimize the impact of noise on the overall system performance. This is crucial in applications where signal quality is critical, such as wireless communications or sensitive measurement equipment.

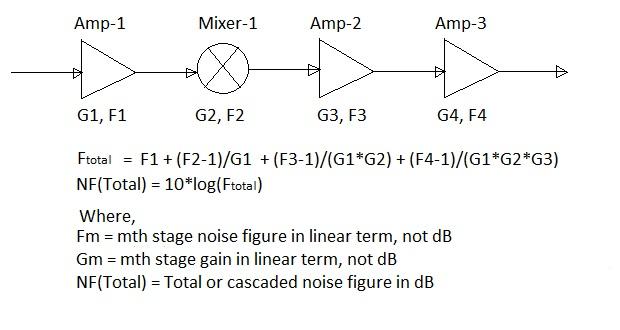

Aggregate Noise Figure

It is used to calculate the overall noise figure of a series (cascade) of interconnected electronic components, such as amplifiers or other signal processing devices. The noise figure (NF) measures how much the noise performance of a system degrades as a signal passes through multiple stages of amplification or processing.

The formula to calculate cascaded NF is given by the following equation:

NFtotal = NF1 + [(NF2 - 1)/G1] + [(NF3 - 1)/(G1 * G2)] + ... + [(NFn - 1)/(G1 * G2 ... * Gn-1)]

Where:

  • NFtotal = Total Noise figure of cascaded system
  • NF1, NF2, NF3, …, NFn are the noise figures of each individual component or stage in the cascade.
  • G1, G2, G3, …, Gn are the gains of each individual component or stage in the cascade.

Cascaded Noise Figure Calculator

Inputs

Outputs

The following calculator can be used for a 4-stage RF chain.

Cascaded Noise Figure Calculation Example

INPUTS:

  • F1 (dB) = 1
  • G1 (dB) = 10
  • F2 (dB) = 5
  • G2 (dB) = 10
  • F3 (dB) = 5
  • G3 (dB) = 10
  • F4 (dB) = 5
  • G4 (dB) = 10

OUTPUTS:

  • Aggregate Noise Figure (linear) = 1.5
  • Aggregate NF(dB) = 1.75

Conclusion

In summary, the Cascaded Noise Figure calculator and noise figure formula are valuable tools for engineers and designers working on electronic and RF systems. They help in designing systems with optimized noise performance, troubleshooting issues, and ensuring compliance with industry standards.
