This page provides tools for calculating cascaded gain and cascaded noise figure. We offer both a cascaded gain calculator and a cascaded noise figure calculator.

The cascaded gain calculator determines the overall gain of a 3-stage amplifier system.

The cascaded noise figure calculator computes the aggregate noise figure for a 3-stage amplifier system.

Example: Cascaded Gain and Noise Figure Calculation

Inputs

Outputs

Let’s illustrate with an example using the calculators.

INPUTS (Linear values):

  • G1 = 10
  • F1 = 1.4
  • G2 = 10
  • F2 = 2
  • G3 = 25
  • F3 = 3.6

OUTPUTS:

  • Cascaded Gain = 33.97 dB
  • Cascaded Noise Figure = 1.83 dB

Equations and Formulas

The following equations are used in the cascaded gain and cascaded noise figure calculators:

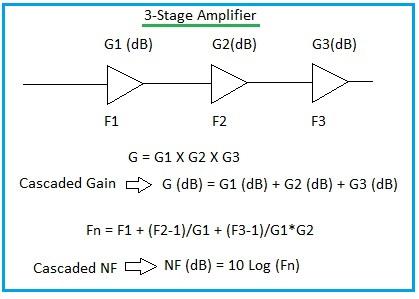

cascaded gain and noise figure equations/formulas

These formulas are essential for determining the overall performance of multi-stage amplifier systems. Understanding how gain and noise figure cascade is crucial in RF and microwave design.
