4096-QAM Modulation in Wi-Fi 7: Advantages and Applications

4096-QAM (Quadrature Amplitude Modulation) is one of the advanced modulation schemes used in Wi-Fi 7 (802.11be).

QAM is a modulation technique that combines both amplitude and phase variations of a carrier signal to transmit data. In 4096-QAM, there are 4096 distinct symbols, each representing 12 bits of data (since 2^12 = 4096). This high number of symbols allows for a much higher data rate compared to lower-order QAM schemes.

Let us understand how it works:

• 4096-QAM uses different combinations of amplitude and phase shifts to create 4096 unique symbols.
• Each symbol in 4096-QAM corresponds to a unique 12-bit pattern, allowing for the transmission of a large amount of data per OFDM symbol period.

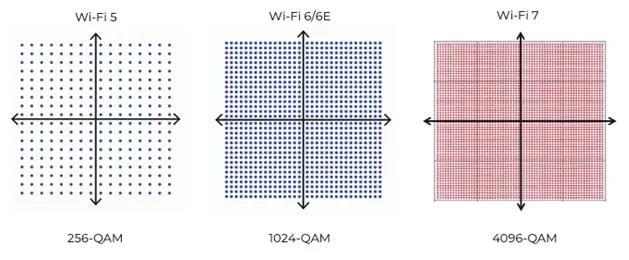

• The constellation diagram of 4096-QAM is densely packed, with 1024 symbols in both the I (In-phase) and Q (Quadrature) axes, leading to very closely spaced symbols.

Advantages of 4096 QAM

Following are the benefits or advantages of 4096-QAM:

1. By transmitting 12 bits per symbol, 4096-QAM significantly increases the data throughput compared to lower-order modulations such as 256-QAM (8 bits per symbol).
2. 4096-QAM allows for more efficient use of the available spectrum, which is crucial for high bandwidth applications like ultra high definition video streaming, AR/VR, and other data-intensive applications.
3. It maximizes the use of available bandwidth, which is essential in environments with limited frequency resources.

Disadvantages of 4096 QAM

Following are the limitations or disadvantages of 4096-QAM modulation:

1. The closely spaced symbols in 4096-QAM require a very high SNR to differentiate between them accurately. Moreover such constellation is susceptible to noise and interference, requiring strong and stable signal conditions.
2. Because the symbols are so closely packed, even small amounts of noise, phase jitter or amplitude distortions can lead to errors. This means 4096-QAM is less robust in environments having heavy interference or physical obstructions compared to 256 QAM and 1024 QAM.
3. To maintain the required SNR, devices may need to transmit at higher power levels, which increases power consumption. This can be a drawback for battery-operated devices.
4. The need for precise phase and amplitude control increases the complexity of the receiver design, which can lead to higher costs and more complex hardware requirements.

Applications of 4096-QAM

• Wi-Fi 7 (802.11be) Networks: 4096-QAM is used in Wi-Fi 7 to significantly boost data rates, supporting bandwidth-intensive applications like ultra-high-definition video streaming, virtual reality (VR), augmented reality (AR), and online gaming.
• 5G and Beyond Wireless Communication: 4096-QAM is employed in advanced 5G networks, especially in high-capacity and low-latency scenarios like urban deployments, to enhance user experience by delivering higher data speeds.
• Backhaul Links: Used in wireless backhaul links, 4096-QAM helps increase the capacity of point-to-point and point-to-multipoint connections, facilitating efficient data transport between cellular base stations and the core network.
• Fixed Wireless Access (FWA): In FWA solutions, 4096-QAM enables high-speed internet access to homes and businesses, especially in areas where fiber or cable infrastructure is not feasible.
• Cable Modem (DOCSIS 4.0) Technology: Cable operators use 4096-QAM in DOCSIS 4.0 standards to deliver higher broadband speeds to end users, enhancing service offerings.

Summary

4096-QAM in Wi-Fi 7 is a powerful tool for achieving high data rates and efficient use of the spectrum. However, its effectiveness is highly dependent on the quality of the signal environment. Ideal conditions include high SNR and low interference, making it most suitable for short-range communication where signal degradation is minimal. As Wi-Fi 7 aims to support ultra-high-performance wireless communication, 4096-QAM plays a crucial role in achieving this goal, despite its limitations in less than ideal conditions.
