Understanding the Wi-Fi 7 (802.11be) MCS Table

wi-fi
wireless communication
mcs table
modulation
data rate

Wi-Fi 7, based on the IEEE 802.11be standard, marks a significant leap in wireless communication, delivering higher data rates, reduced latency, and improved overall efficiency. A core component in understanding Wi-Fi 7 is the Modulation and Coding Scheme (MCS) table, which details the achievable data rates under varying conditions.

The MCS table in Wi-Fi 7 establishes the relationship between several key parameters that ultimately determine the data rate for a given connection. These parameters include:

  • Modulation Type: This defines the modulation technique used to encode the data. Wi-Fi 7 supports advanced modulation schemes like 4096-QAM (Quadrature Amplitude Modulation), which enables higher data rates by encoding more bits per symbol.

  • Coding Rate: This represents the proportion of total bits that are actual data, as opposed to error correction bits. A higher coding rate (e.g., 5/6) signifies more data and fewer error correction bits, leading to higher throughput but requiring a better signal-to-noise ratio (SNR).

  • Number of Spatial Streams: Wi-Fi 7 can employ multiple antennas to simultaneously transmit and receive multiple data streams. The number of spatial streams directly impacts the data rate, with more streams translating to higher throughput.

  • Channel Bandwidth: Wi-Fi 7 can utilize wider channel bandwidths, up to 320 MHz. Wider bandwidths allow for more data to be transmitted concurrently, thereby increasing the overall data rate.

  • Guard Interval: The guard interval is the time separating symbols to prevent interference between them. Wi-Fi 7 supports different guard interval lengths, with shorter intervals enhancing efficiency but demanding better signal quality.

  • Data Rate: The MCS table ultimately determines the data rate (in Mbps) for each combination of the parameters mentioned above.

Use of WiFi 7 MCS Table as per IEEE 802.11be

The MCS table is crucial in Wi-Fi 7 because it defines how data rates are adjusted based on channel conditions and device capabilities. Here’s how it’s used:

  • Dynamic Adaptation: Wi-Fi 7 devices can dynamically switch between different MCS levels based on real-time channel conditions. For instance, if the signal quality deteriorates due to interference or distance, the device might switch to a lower MCS index with more robust error correction (lower coding rate) and a lower modulation scheme (e.g., from 4096-QAM to 1024-QAM) to maintain a stable connection.

  • Optimization for High Throughput: With support for up to 4096-QAM, wider channels (up to 320 MHz), and more spatial streams, Wi-Fi 7 can achieve theoretical maximum data rates significantly higher than previous standards. The MCS table assists in selecting the optimal settings to maximize throughput under ideal conditions.

  • Energy Efficiency: The MCS table also contributes to optimizing power consumption. Devices can select lower MCS indexes during less demanding tasks to conserve energy, especially in mobile devices.

  • Backward Compatibility: The MCS table in Wi-Fi 7 includes entries compatible with previous standards (such as Wi-Fi 6), ensuring that devices can communicate with older access points and devices without issues.

MCS Table as defined in WiFi 7

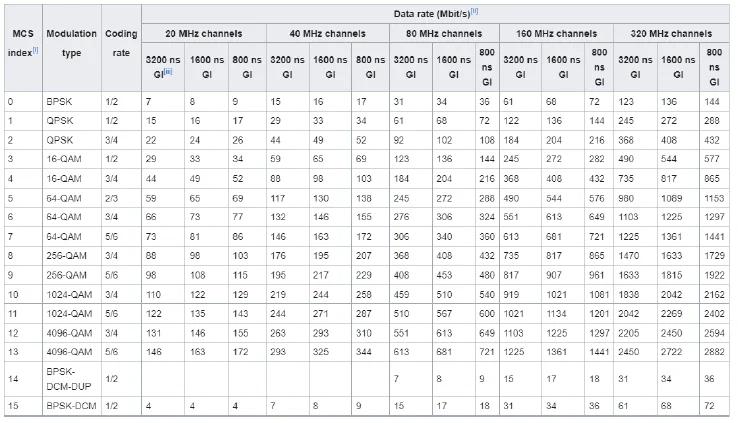

The following image illustrates a WiFi 7 MCS table as defined in IEEE 802.11be standard. It illustrates how different combinations of modulation, coding rate, spatial streams, channel bandwidth, and guard interval result in different data rates.

WiFi 7 MCS Table

As mentioned, the following 4 new MCS indices have been added in Wi-Fi 7:

  • MCS12 - 4096QAM, 3/4 coding rate
  • MCS13 - 4096QAM, 5/6 coding rate
  • MCS14 - BPSK-DCM-DUP, 1/2 coding rate
  • MCS15 - BPSK-DCM, 1/2 coding rate

Summary

The MCS table is a fundamental tool in Wi-Fi 7, enabling devices to achieve optimal performance by dynamically adjusting key parameters based on real-time conditions. This flexibility is crucial for meeting the demanding requirements of modern wireless applications, ranging from high-definition video streaming to low-latency gaming.
