Introduction:

RF attenuators are essential components that reduce signal power, preventing overload and improving the overall performance of communication systems. You’ll find them in almost every RF communication setup. They perform the opposite function of amplifiers, which increase or boost signal power.

RF attenuator

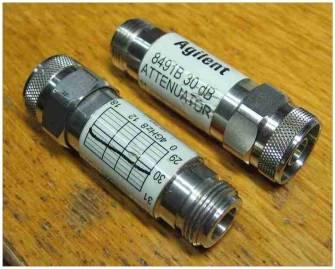

Figure: Connectorized RF attenuator of 30dB from Agilent Technologies.

Types of Attenuator

There are two main types of RF attenuators: fixed and variable.

  • Fixed Attenuators: Provide a fixed amount of attenuation, typically designed using discrete or chip resistors.
  • Variable Attenuators: Offer variable levels of attenuation. These can be further divided into:
    • Stepped Variable Attenuators: Change attenuation in fixed steps.
    • Continuously Variable Attenuators: Provide continuous adjustment of attenuation.

Variable attenuators usually employ PIN diodes or FETs and require a control voltage input to adjust the attenuation value.

RF attenuator,PIN diode based

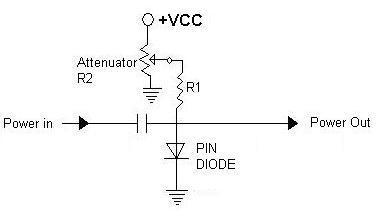

Figure: PIN diode based RF attenuator design.

In this circuit, the resistance across the diode is a function of the applied bias voltage. Resistor R2 acts as a potentiometer, changing the voltage applied to the diode terminals, which in turn provides attenuation to the Power Input. A variation of this circuit using four PIN diodes arranged in a bridge is a popular design for variable RF attenuators.

There are also RF attenuators that change attenuation based on temperature, often called thermopads or temperature variable attenuators. These are particularly useful for mitigating drastic gain changes due to atmospheric conditions. Manufacturers provide temperature versus attenuation curves to aid in the design of thermally resistant RF units.

Selection Guide

When selecting an RF attenuator, consider the following specifications:

  • Frequency Range: The range over which the attenuator should operate.
  • Impedance: Typically 50 Ohm or 75 Ohm.
  • Attenuation Value: Fixed, variable in steps, or continuously variable, measured in dB.
  • Connector Type: For connectorized versions, common types include SMA, N-type, BNC, and TNC.

Designing Fixed Attenuators Using RF Chip Resistors

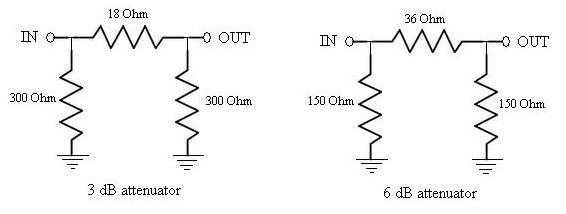

You can use T and Pi based formulas or equations to determine the values of individual chip components for fixed attenuators. The following figure shows calculations for 3dB and 6dB RF attenuators based on a Pi type configuration:

rf attenuators,3dB and 6dB

Advantages of RF Attenuators

RF attenuators offer several benefits:

  1. Power Reduction: Reduces the power of RF signals to prevent damage to sensitive components in receivers and test equipment.
  2. Impedance Matching: Helps maintain proper impedance (e.g., 50 or 75 Ohm) to minimize signal reflection and ensure efficient transmission.
  3. Accurate Testing: Ensures accurate readings in RF testing by reducing signal amplitude to a measurable level.
  4. Versatility: Works across various frequency ranges, making it useful in wireless communication, radar, and RF testing applications.

RF Attenuator Manufacturers

Here are some of the leading manufacturers of RF attenuators:

CompanyDescriptionWebsite
AeroflexPCB mountable attenuator pads and chip components are available.www.aeroflex.com
Hittite MicrowaveDigital control variable attenuators for various frequency ranges up to 30 GHz are available. Voltage variable attenuators are also available.www.hittite.com
Narda MicrowaveConnectorized attenuators of all types fixed, variable, and step are available.www.nardamicrowave.com
MinicircuitsIdeal for connectorized RF attenuators of SMA/N-type/BNC type/TNC type and more.www.minicircuits.com
RF Micro DevicesVarious types of attenuators viz. analog, digital, and temperature controlled are available.www.rfmd.com
SkyworksDigital RF attenuators ideal for RF transceiver design are available.www.skyworksinc.com
AnarenChip attenuators/terminations and SMD attenuators/terminations are available.www.anaren.com
JFW IndustriesConnectorized RF attenuators of various types are available.www.jfwindustries.com
EMC RF LabsIdeal for RF thermopad purchase.www.emc-rflabs.com
MicrolabIdeal for coaxial RF attenuators.https://fxr.com/

Conclusion

Choosing a high-quality RF attenuator ensures precise signal control and system efficiency. Explore these top manufacturers for the best solutions for your needs.
