This page dives into the world of RF attenuators, covering their types, basics, benefits, and advantages.

RF Attenuator Basics

An RF attenuator is a device that reduces the power of a radio frequency (RF) signal as it travels through a wired medium.

There are two main types of RF attenuators based on their functionality:

  • Fixed RF Attenuator: Provides a fixed amount of attenuation to the RF signal.
  • Variable RF Attenuator: Offers a variable amount of attenuation, adjustable either manually or through programming.

Based on mounting techniques, RF attenuators can also be categorized as:

  • Chip RF Attenuators: Used in RF and microwave circuit designs, easily soldered onto Printed Circuit Boards (PCBs).
  • Connectorized RF Attenuators: Use connectors for easy integration in test setups.

Variable attenuators are further divided into:

  • Digital Attenuators: Controlled using digital signals.
  • Analog Attenuators: Controlled using analog signals.

RF attenuators are constructed using various components such as passive resistors, PIN diodes, and FETs.

RF attenuator

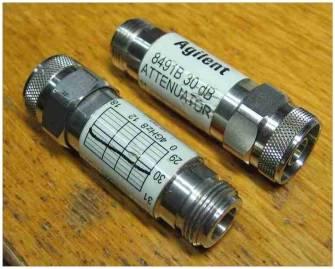

The figure depicts a fixed RF attenuator with two ports.

RF attenuators find applications in RF/Microwave circuit designs, Test and Measurement setups, microwave waveguides, wireless links, and more.

Popular RF attenuator manufacturers include Mini Circuits, Skyworks, Anaren, Narda Microwave, Hittite Microwave, JFW Industries, EMC RF Labs, and RF Micro Devices.

Key Specifications for RF Attenuator Selection

When selecting an RF attenuator, consider these specifications:

  • Frequency: The operating frequency range over which the attenuator provides the desired attenuation.
  • Attenuation: The amount of signal reduction provided, measured in dB (decibels). Common fixed attenuation values include 3dB, 6dB, 10dB, 20dB, 30dB, etc.
  • Power Handling Capacity: The maximum power the attenuator can handle without damage or performance degradation.
  • Impedance: The characteristic impedance of the transmission line the attenuator will be used with. Common impedance values are 50 Ohm and 75 Ohm.
  • Return Loss: The SWR (Standing Wave Ratio) of the attenuator at its input and output. Lower return loss (higher SWR) is generally preferred.
  • Accuracy: The precision of the attenuation provided by the attenuator.
  • Packaging: The type of connector or mounting style (e.g., SMA, N-Type, waveguide, surface mountable).

Benefits and Advantages of RF Attenuators

Here’s why RF attenuators are essential in various applications:

  • Signal Attenuation: The primary function - to reduce the power of an RF signal.
  • Impedance Matching: Improves return loss by enhancing impedance matching within the RF circuit.
  • Receiver Protection: Protects sensitive receiver circuits (like those in expensive signal analyzers and power meters) by reducing the incoming signal level.
  • Versatile Testing: Variable RF attenuators are used in testing and measuring RF devices, allowing for adjustable attenuation levels to meet measurement requirements.
  • Overload Prevention: Prevents overloading of RF components like mixers and amplifiers by reducing the signal level at their inputs.
  • Dynamic Range Extension: Extends the dynamic range of measurement instruments, enabling them to detect signals below the noise floor.

It’s worth noting that RF attenuators also have some limitations related to their design and construction. For example, some types may exhibit degraded VSWR as attenuation increases, while others may have bandwidth limitations or performance issues.
