Understanding UMTS Channels: Logical, Transport, and Physical

umts
channel
transport
physical layer
logical

UMTS channels form the backbone of data transfer, categorizing information into logical, transport, and physical channels. Each channel type has distinct roles in data flow, facilitating smooth communication and reducing interference.

Understanding these channels provides clarity on how data is processed, transmitted, and received in a UMTS network. As shown in the figure, there are three types of UMTS channels viz. logical channels (RLC layer), transport channels (MAC layer) and physical channels (PHY layer).

As they traverse between layers, they map to other layer frames. For example, logical channels are mapped to transport channels, and transport channels are mapped to physical channels.

UMTS channels

UMTS Logical Channels

Logical channels define what type of information is transmitted over the network. They are categorized into two groups: control channels and traffic channels.

  • Control Channels: Carry signaling and control information.
  • Traffic Channels: Carry user data such as voice and internet traffic.

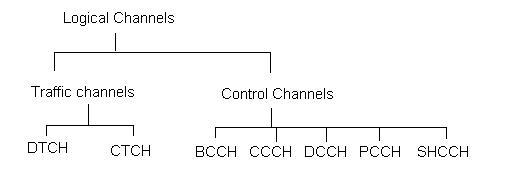

UMTS logical channels

As the name suggests, traffic channels carry information (voice), and control channels carry signaling information useful to establish and maintain a connection between the UE and the network (NodeB).

Following are the functions of each of these logical channels. Note that DL stands for Downlink from network to UE and UL stands for Uplink from UE to Network.

  • DTCH (DL and UL, point to point): Dedicated Traffic channel, carries user information.
  • CTCH (unidirectional point to multi-point): Common traffic channel.
  • BCCH (DL broadcast): Broadcast Control Channel, carries SYSTEM INFORMATION.
  • CCCH (Bidirectional): Common Control Channel.
  • DCCH (Dedicated Control Channel, point to point bidirectional):
  • PCCH (Paging Control Channel, DL): Carries paging information.
  • SHCCH (Shared Channel Control Channel, Bidirectional):
UMTS/WCDMA Logical ChannelFunctionDirectionDuplex Mode
Dedicated traffic channel (DTCH)Carry user plane data (speech/packet data)Uplink (UL)/Downlink (DL)FDD/TDD
Dedicated control channel (DCCH)Carry signaling messages used for control operationsUplink/DownlinkFDD/TDD
Shared control channel (SHCCH)Carry control messagesUplink/DownlinkTDD
Common control channel (CCCH)It is used to carry control messagesUplink/DownlinkFDD/TDD
Common traffic channel (CTCH)It is used to carry user traffic (e.g., cell broadcast SMS)DownlinkFDD/TDD
Paging control channel (PCCH)It is used to carry paging messages directed towards UEDownlinkFDD/TDD
Broadcast control channel (BCCH)It is used to carry broadcast messages towards UEDownlinkFDD/TDD

UMTS Transport Channels

Transport channels define how data is transmitted over the air interface. They determine characteristics such as data rate, error protection, and transmission timing.

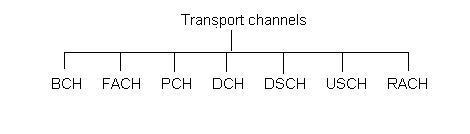

UMTS transport channels

Following are the transport types of UMTS channels:

  • BCH (DL broadcast): SYSTEM/Cell related INFORMATION
  • FACH (DL/Forward Access Channel): Carries control information from network to UE
  • PCH (DL): Paging Channel
  • DCH (UL or DL): Dedicated Channel
  • DSCH (DL): Downlink Shared Channel
  • USCH (UL): Uplink Shared Channel
  • RACH (UL): Random Access Channel
UMTS/WCDMA Transport ChannelFunctionDirectionDuplex Mode
Random access channel (RACH)It is used for initial access of the network by UEUplinkFDD/TDD
Common packet channel (CPCH)It is used as contention channel for bursty dataUplinkFDD/
Forward access channel (FACH)It is used to transfer user data/control signaling messagesDownlinkFDD/TDD
Downlink shared channel (DSCH)It is used as shared channel carrying dedicated user data/control messages in the downlinkDownlinkFDD/TDD
Uplink shared channel (USCH)It is used as shared channel carrying dedicated user data/control messages in the uplinkUplinkTDD
Broadcast channel (BCH)Broadcast channel to all UEs in a cellDownlinkFDD/TDD
Paging channel (PCH)Broadcast of paging & notification messages, also allows UE to make use of sleep ModeDownlinkFDD/TDD
Dedicated Channel (DCH)It is used as dedicated channel to transfer traffic/control messages in both the directionUplink/DownlinkFDD/TDD

UMTS Physical Channels

Physical channels are responsible for transmitting the actual data over the air using specific modulation, coding, and scrambling techniques.

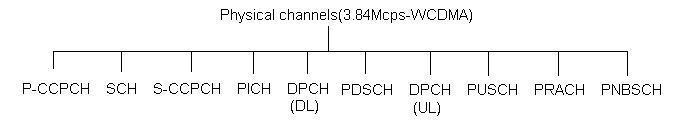

UMTS physical channels

Following are physical types of UMTS channels for the 3.84 Mcps case:

  • P-CCPCH: Primary Common Control Physical Channel
  • SCH: Synchronization Channel
  • S-CCPCH: Secondary Common Control Physical Channel
  • PICH: Paging Indicator Channel
  • DPCH (DL): Dedicated Physical Channel in the downlink
  • PDSCH: Physical Downlink Shared Channel
  • DPCH (UL): Dedicated Physical Channel in the uplink
  • PUSCH: Physical Uplink Shared Channel
  • PRACH: Physical Random Access Channel
  • PNBSCH: Physical Node B Synchronization Channel

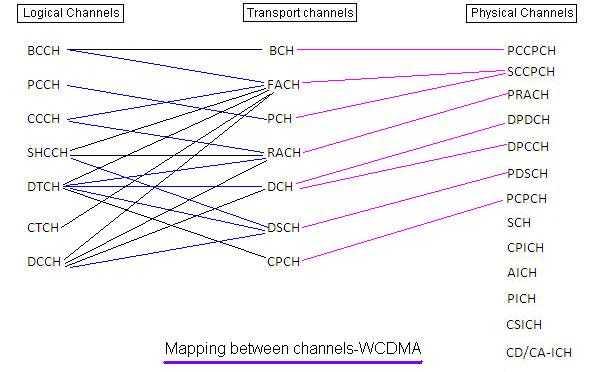

Mapping between channels

WCDMA logical channels transport channels physical channels mapping

Conclusion

A clear understanding of UMTS channels helps optimize network performance, minimize data loss, and improve service quality. Familiarizing yourself with the channel structures enables efficient management of resources in UMTS networks.
