Introduction

Supervisory Control and Data Acquisition (SCADA) systems are central to modern industrial automation and control. This tutorial explores the fundamental aspects of SCADA, including its operation, wide-ranging applications across industries, benefits, and leading manufacturers.

What is SCADA?

SCADA stands for Supervisory Control And Data Acquisition. It is a type of industrial control system used to monitor and control various processes and operations, such as power generation, manufacturing, water treatment, and oil and gas pipelines. SCADA systems provide real-time data, visualization, and control capabilities, enabling engineers and operators to manage and optimize complex processes.

Key features of a SCADA system include:

  • Data acquisition
  • Supervision
  • Control
  • Alarm and event management
  • Data logging

SCADA systems use various communication protocols to gather data from sensors and control devices.

SCADA Working Principle

A SCADA system involves the collection, monitoring, control, and management of data from various sensors and remote devices, helping engineers make informed decisions and take appropriate actions.

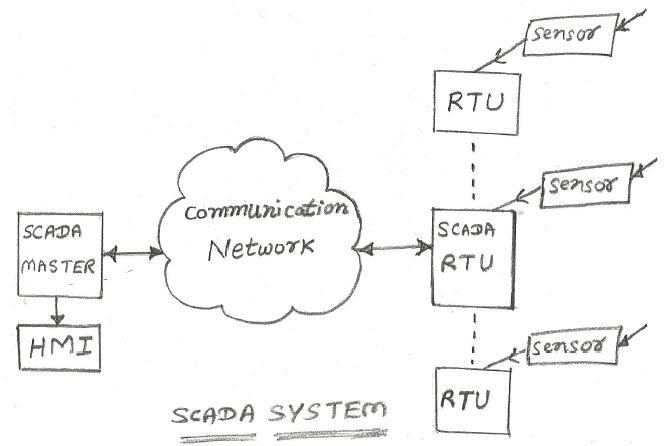

The system components of a typical SCADA system are:

  • Data acquisition using sensors: Data is gathered from sensors, instruments, and devices installed throughout the industrial process. These sensors measure parameters such as temperature, pressure, flow rate, and current. Data acquisition involves either polling or direct communication with the devices. Sensors are often attached to Remote Telemetry Units (RTUs) to conduct measurements.

  • SCADA Remote Telemetry Units (RTUs): RTUs interface with sensors and the SCADA master using a communication network, delivering various parameters to the central station (SCADA master).

  • SCADA Master: The SCADA master consists of programmable controls and multiprotocol support, providing a human interface. It takes inputs from sensors via RTUs and regulates various applications. The SCADA master provides various display formats, such as graphs and tables, and includes LEDs/Alarms for different functions. It can also provide email/paging alerts based on specific conditions.

  • Communication medium/network: These interfaces connect the SCADA master with the SCADA RTUs. SCADA uses wired (Ethernet, serial) or wireless (RF or cellular network) protocols. Some popular protocols include Modbus, OPC, and DNP3 for collecting data from sensors or devices. The collected data is then transmitted to the central SCADA server for processing.

  • Data processing and visualization: The collected data is processed and organized by SCADA software. The GUI provides real-time visualizations, alarms, charts, and other relevant information to operators and engineers.

  • Alarms, Notifications, and Supervision: The system monitors data against set thresholds and generates alarms and notifications as needed. Operators can control and supervise industrial processes remotely.

  • Data logging, reporting, and analysis: Data can be stored in databases for further analysis and reporting, with SCADA systems using various tools for this purpose.

  • Security and remote access: The system allows authorized personnel to access and control the system remotely.

scada basics

SCADA System Manufacturers

The following table lists SCADA system providers and their associated equipment manufacturers:

SCADA CompanyDescription
ABBOffers SCADA solutions (such as ABB Ability TM) for industries including oil and gas, and power generation. Manufactures SCADA equipment including PLCs, RTUs, and communication devices.
SiemensOffers SCADA solutions under the SIMATIC brand, and produces PLCs, RTUs, and HMIs (Human Machine Interfaces).
Schneider ElectricProvides SCADA solutions under the Wonderware brand, including PLCs/RTUs and other devices.
Rockwell AutomationOffers solutions in their specific brand in addition to SCADA equipment listed above.
GE DigitalSame as above.

Other SCADA companies include Honeywell, Emerson, AVEVA, YOKOGAWA, Phoenix Contact, and B&R Automation.

SCADA Applications

SCADA has major applications in:

  • Electric Utilities: Managing current, voltage, circuit breakers, and power grids.
  • Water and Sewage: Monitoring and controlling water levels, water flow, and water pipe pressure.
  • Buildings: Controlling heating, ventilation, air conditioning, visualization, lighting, and building access systems.
  • Mass Transit: Regulation of electricity and tracking the location of buses, trams, and trains.
  • Railways/Roadways: Controlling traffic signal lights.
  • Oil and Gas: Real-time monitoring of pipeline operations, including flow, pressure, and leak detection for safe and efficient transportation of oil and gas.
  • Pharmaceutical & Healthcare: Monitoring and controlling critical processes in pharmaceutical manufacturing to ensure product quality and compliance.
  • Environmental Monitoring: Continuous monitoring of air and water quality, emissions, and pollution levels.
  • Agriculture and Farming: Monitoring soil moisture, temperature, and other parameters for crop management.

Advantages of SCADA Systems

Here are some major benefits of SCADA systems:

  1. Real-Time Monitoring and Control: SCADA systems enable continuous monitoring and control of industrial processes in real-time, providing accurate data from sensors, machines, and devices. This helps operators detect anomalies or inefficiencies instantly and take corrective actions promptly.

  2. Enhanced Productivity and Efficiency: By automating processes and reducing manual interventions, SCADA systems optimize operations, improve resource utilization, and minimize downtime, resulting in higher productivity and operational efficiency.

  3. Improved Decision Making: SCADA systems collect and analyze vast amounts of data, offering actionable insights through dashboards and reports. This data-driven approach enables better decision-making for process improvements and long-term planning.

  4. Cost Savings: SCADA reduces operational costs by streamlining processes, minimizing energy consumption, and preventing costly equipment failures through predictive maintenance and real-time diagnostics.

  5. Remote Access and Scalability: With SCADA, operators can monitor and control systems remotely, enabling faster response times and reducing the need for on-site personnel. Additionally, SCADA systems are scalable, allowing businesses to expand their operations seamlessly without significant infrastructure changes.

Conclusion

SCADA systems have revolutionized industrial processes by offering real-time monitoring, improved efficiency, and cost-effective solutions. From energy and manufacturing to transportation and utilities, the applications of SCADA are vast and critical to modern infrastructure. With advancements in technology, SCADA systems continue to evolve, providing even greater reliability and performance. Understanding how SCADA works, its benefits, and the key players in the market can help you leverage its capabilities for optimal operational success.
