SCADA Systems: Advantages and Disadvantages

scada
automation
data acquisition
control system
industrial

SCADA (Supervisory Control and Data Acquisition) systems are vital in many industries, including power, water, and electrical systems. Let’s dive into the pros and cons.

What is SCADA?

SCADA stands for Supervisory Control and Data Acquisition. As the name implies, it’s primarily a supervisory-level system. Here’s a breakdown of its functions:

  • It’s a computer system that collects and analyzes real-time data using sensors.
  • It monitors and controls the operations of plants or equipment.

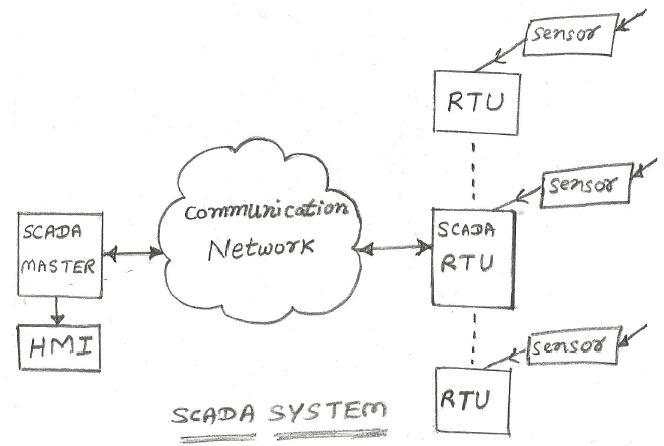

scada basics

A SCADA system consists of three main parts:

  • MTU (Master Terminal Unit): The central control and monitoring point.
  • RTU (Remote Terminal Units): Located at remote sites, these collect data from sensors and send it to the MTU.
  • HMI (Human Machine Interface): The user interface that allows operators to interact with the system.

Sensors are strategically placed to gather data for various functions.

SCADA Applications

SCADA systems are used across numerous industries. Here are some key applications:

  • Power Systems: Real-time grid monitoring and control, load management, fault detection, and equipment health monitoring (transformers, circuit breakers, generators). SCADA helps optimize power generation and distribution for efficiency and cost reduction.
  • Water Supply: Remote monitoring of water treatment plants, reservoirs, and distribution networks. SCADA aids in leak detection, chemical dosing control, water level management, and pump/valve control.
  • Electrical Domain: Managing HVAC systems, lighting, and security in commercial and residential buildings. SCADA also monitors and controls renewable energy sources (wind farms, solar plants) to maximize energy production and grid integration.
  • Other Applications: Manufacturing, industrial processes, data centers, traffic signal control, toll collection, and monitoring of road and rail infrastructure for optimized traffic flow and safety.

Benefits (Advantages) of SCADA

Here are the upsides of using a SCADA system:

  1. Large Data Storage: SCADA systems can store massive amounts of data.
  2. Versatile Data Display: Data can be displayed in various formats tailored to user needs.
  3. Wide Sensor Network: SCADA can connect thousands of sensors across a wide area for comprehensive monitoring and control.
  4. Real-Time Simulations: Operators can obtain real-time data simulations.
  5. Diverse Data Gathering: Many data types can be collected from RTUs connected to the master unit.
  6. Remote Monitoring: With advanced protocols and software, data can be monitored from anywhere, not just the local site.
  7. Redundancy for Robustness: SCADA systems often include redundant units for backup in case of failures, enhancing system reliability.
  8. Fast Response Times: SCADA systems offer quick response times.
  9. Scalability and Flexibility: Easy to add resources as needed.
  10. Wide Applicability: Used in telecommunications, energy, transportation, oil & gas, water, military, meteorology, and more.

Drawbacks (Disadvantages) of SCADA

Here are the potential downsides of SCADA:

  1. Complexity: PLC-based SCADA systems can be complex in terms of hardware and dependent modules.
  2. Skilled Personnel Required: Maintaining a SCADA system requires skilled operators, analysts, and programmers. Training is essential for effective use and maintenance.
  3. High Installation Costs: Installation can be expensive.
  4. Potential Job Displacement: Automation can lead to reduced employment in certain areas.
  5. Software and Hardware Restrictions: SCADA systems may require specific software and hardware.
  6. Cybersecurity Vulnerabilities: Increased connectivity can make systems vulnerable to cyberattacks if not properly secured.
  7. Data Overload: The large volume of data generated can overwhelm operators, making it hard to identify critical issues.
  8. Reliance on Technology: System failures can have significant consequences due to the reliance on technology.
  9. Maintenance and Updates: Regular maintenance and updates are necessary to keep systems operational and secure, which can be time-consuming and costly.
  10. Lack of Redundancy: Insufficient redundancy can lead to system failures if a critical component or communication link fails.

Conclusion

In summary, SCADA systems are essential tools for modern power systems, offering real-time monitoring, control, and data analysis that improve grid reliability, efficiency, and overall performance. They are vital for effective management and optimization of power generation, transmission, and distribution.
