The relationship between an antenna’s gain and its effective area is crucial in understanding its performance characteristics. This concept applies to various antenna types, such as parabolic dishes, horn antennas, and dipoles. The gain of an antenna indicates its ability to focus energy in a particular direction, while the effective area defines the portion of power that can be effectively received or transmitted. By exploring these parameters, engineers can optimize antenna designs for specific applications in communication, broadcasting, and radar systems.

This page provides formulas for different antenna types to clarify the gain and effective area relationship.

Antenna Gain (G)

G=4πAeλ2=4πf2Aec2G = \frac{4 \pi A_e}{\lambda^2} = \frac{4 \pi f^2 A_e}{c^2}

Where:

  • GG = antenna gain of parabolic dish
  • AeA_e = Effective area
  • ff = Carrier frequency
  • cc = Speed of light
  • λ\lambda = Carrier wavelength
  • π\pi = 3.14

Parabolic Reflector Antenna

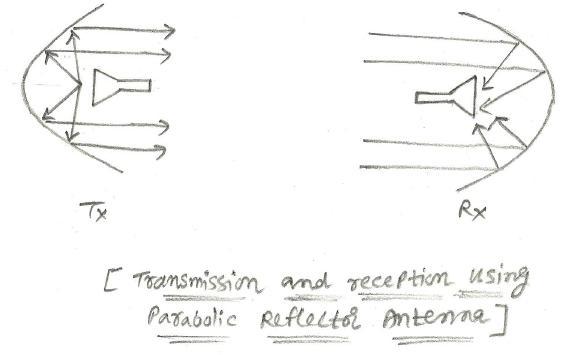

Figure: Parabolic Reflector Antenna

Antenna Types with Gain and Effective Area Formula

Antenna TypeEffective Area, meter2^2Power Gain relative to Isotropic Antenna
Isotropicλ2/4π\lambda^2 / 4\pi1
Infinitesimal dipole or loop1.5λ2/4π1.5 \lambda^2 / 4\pi1.5
Half-wave dipole1.64λ2/4π1.64 \lambda^2 / 4\pi1.64
Horn, mouth area A0.81A0.81 A10A/λ210 A / \lambda^2
Parabolic, face area A0.56A0.56 A7A/λ27 A / \lambda^2
Two crossed, perpendicular dipoles1.15λ2/4π1.15 \lambda^2 / 4\pi1.15

Conclusion

Understanding the interplay between an antenna’s gain and its effective area is essential for selecting the right antenna for your application. Whether it’s a high-gain parabolic dish for satellite communication or a horn antenna for directional signal transmission, knowing how these parameters influence performance ensures better system efficiency and reliability. By comparing various antenna types, you can make informed decisions that optimize signal strength and coverage, enhancing overall communication quality.
