Antenna Efficiency Calculator and Formula
Advertisement
This page provides an antenna efficiency calculator along with the formula used in its calculations. The example provided focuses on a parabolic reflector antenna.
Antenna Efficiency Calculator Example
Here’s how to use the calculator:
INPUTS:
- Antenna diameter = 2.4 meters
- Antenna Gain (dBi) = 43
- Antenna frequency = 6000 MHz
OUTPUT:
- Antenna efficiency = 87.75 %
Antenna Efficiency Formula
The following section details the equation used to calculate antenna efficiency.

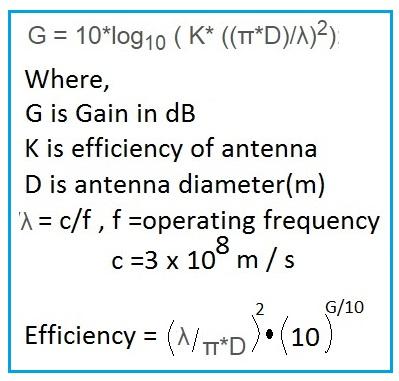

The Antenna Gain equation can be expressed as shown in the image above. From this equation, antenna efficiency can be derived and calculated using the calculator mentioned earlier. The inputs required for this calculation are antenna diameter, antenna gain, and antenna frequency. The derived formula for antenna efficiency, based on the antenna gain equation, is shown in the image.
