This page describes logic analyzer basics and lists some prominent logic analyzer manufacturers.
In complex microprocessor systems, data changes rapidly and constantly. To meaningfully assess the system’s state, it’s crucial to analyze the data on an instruction-by-instruction basis. This is where logic analyzers come in. The fundamental technique involves capturing data over a short period, storing it, analyzing it, and displaying it in a desired format.
Logic analyzers interface with the device under investigation via an input port and acquisition memory. They are typically microprocessor controlled.
Logic analyzer prices range from approximately 500 pounds to several thousand pounds, depending on the features and functionalities supported. Most full-function logic analyzers offer two display modes: time domain and state domain.
The ‘time domain’ mode displays a timing diagram plotting logic waveforms, showing the states of each input line over a given time interval. The display window is usually scrollable, allowing for more detailed analysis of the captured data.
The alternative ‘state domain’ mode presents data in binary or hexadecimal format and often includes data disassembly capabilities for various microprocessors.
Logic Analyzer Manufacturers
Here are some logic analyzer manufacturers from well-known test and measurement companies:
| Company with Model number | Features |
|---|---|
| Tektronix , TLA6400 | Channels:34 to 136 Max. clock rate:667 MHz Timing/Timing resolution:25GHz, 40ps Price:About $11900 |
| Tektronix, TLA7000 | Channels:34 to 680 Max. clock rate:800 MHz to 1.4 GHz Timing/Timing resolution:8 GHz to 50 GHz, 20 ps to 125 ps Price:About $20600 |
| Keysight , 16850 | Timing analysis(2.5GHz/5GHz, upto 128M/256M memory, 12.5GHz(80ps) timing zoom with 256K memory) State analysis(350MHz and 700MHz state clock, upto 128M deep memory ) |
| Keysight, 16800 | 204 channels, 32M deep memory, 15 inch color display, pattern generator with 300MHz max. clock rate and max.memory depth of 16M vectors |
| USBee logic analyzer | Upto 600MHz sampling, upto 896 million samples buffer uncompressed, upto 256 trillion samples with compression, upto 24 digital channels/4 analog channels, USB and WIFI interface |

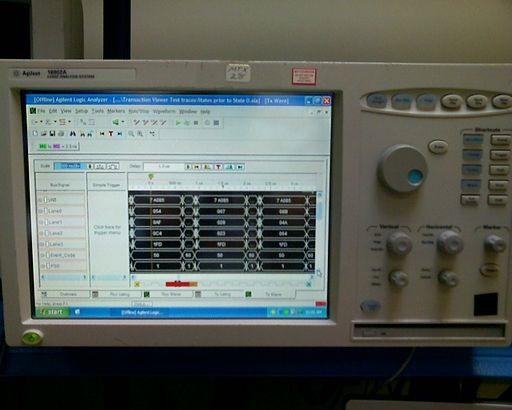

Other models from Keysight include the 16901A and 16902B. The figure above depicts the 16902A model of logic analyzer from Keysight Technologies.
