This application note covers the basics of 5G Analyzers, with a specific mention of the MS2850A model from Anritsu Corporation.

A 5G Analyzer is used to analyze 5G compliant signals generated by User Equipment (UE) and network equipment. It helps in testing and measuring the performance of these devices against 5G standards.

About 5G Analyzers

The analyzer used to perform test and measurement of 5G compliant devices such as UE and Radio Access Network (RAN) equipment is known as a 5G analyzer. These analyzers also often incorporate 5G signal generation functionalities required to test 5G UE.

This signal generation capability is needed to complete the initial handshake of messages (both user plane and control plane) between the 5G UE and RAN equipment. Once the handshake is completed, the UE is kept in transmit mode, allowing for all the UE measurements to be performed as per the test cases defined by 5GPP specifications.

5G Analyzer

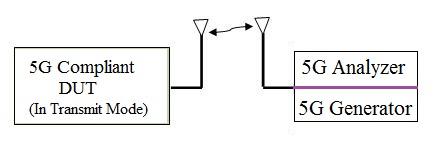

Figure 1: Simple test setup for testing a 5G Device Under Test (DUT) using a 5G analyzer.

The setup is used to perform RF and PHY (i.e., Baseband) layer related measurements.

5G Analyzer from Anritsu (MS2850A)

The Anritsu MS2850A is a notable 5G Analyzer. The following table outlines some of its key specifications:

Specifications/FeaturesDetails
Frequency rangeFrom 9KHz to 32 GHz and 44.5 GHz models are available
Bandwidth255 MHz, 510 MHz and 1 GHz versions are available
Uplink/Downlink MeasurementsBoth uplink and downlink signal measurements are supported
RF MeasurementsNoise figure, Phase noise etc.
Baseband MeasurementsSignal frequency error, EVM (Error Vector Magnitude), power, spectral flatness, phase flatness etc.

Other 5G Analyzer Manufacturers or Vendors

Here’s a list of some other manufacturers and vendors of 5G Analyzers:

5G Analyzer Vendors/ManufacturersDescription with part number
Keysight Technologies Inc.The 5G test bed include the following equipments/software:
• M9383A PXIe Signal Generator upto 44 GHz
• N9040B UXA Signal Analyzer, upto 50 GHz
• 89600 VSA software
Rohde & SchwarzInclude the following equipments:
• R&S®SMW200A Vector Signal Generator (VSG)
• R&S®FSW Signal Analyzer
AnritsuModel MS2850A as explained above.
