As wireless technology rapidly advances, WiFi 6E and WiFi 7 stand out as significant improvements in high-speed internet and seamless connectivity.
WiFi 6E enhances WiFi 6 by incorporating the 6 GHz band, which offers increased bandwidth and reduces congestion. In contrast, WiFi 7, the next generation of WiFi, promises revolutionary improvements in speed, latency, and overall efficiency.
This article delves into the core differences between WiFi 6E and WiFi 7, providing insights into how these technologies compare in terms of performance, bandwidth, and real-world applications.
What is WiFi 6E?
WiFi 6E is an extension of WiFi 6 that leverages the 6 GHz frequency band. This unlocks more channels and provides improved capacity, allowing devices to operate with minimal interference. This expanded spectrum significantly reduces congestion, making WiFi 6E an excellent choice for environments with many connected devices, such as smart homes, offices, and public spaces.

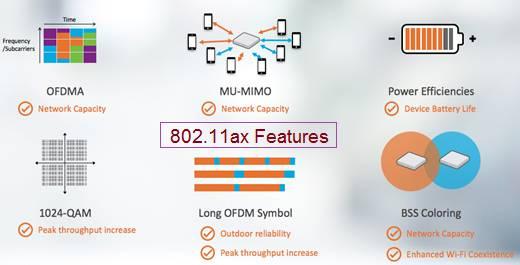

Image Courtesy: Ruckus Networks
Here’s a breakdown of the technical specifications of WiFi 6E concerning the RF, PHY, and MAC layers:
1. PHY (Physical Layer)
- Modulation Scheme: OFDMA (Orthogonal Frequency Division Multiple Access) with 1024-QAM for higher data rates.
- Channel Widths: Supports 20 MHz, 40 MHz, 80 MHz, and 160 MHz channels.
- Data Rate: Theoretical maximum data rate is up to 9.6 Gbps.
- Spatial Streams: Supports up to 8 spatial streams.
- MIMO (Multiple Input Multiple Output): MU-MIMO (Multi-User MIMO) for simultaneous communication with multiple devices.
- Coding Schemes: LDPC (Low-Density Parity-Check) and BCC (Binary Convolutional Code).
2. RF (Radio Frequency)
- Frequency Bands: Operates in the 6 GHz band (in addition to 2.4 GHz and 5 GHz).
- Bandwidth Availability: Provides 1.2 GHz of additional spectrum in the 6 GHz band.
- Channel Availability: Up to 59 new 20 MHz channels in the 6 GHz band.
- Power Levels: Same power levels as 5 GHz (i.e., maximum 30 dBm EIRP in certain regulatory domains).
3. MAC (Medium Access Control)
- OFDMA (Orthogonal Frequency Division Multiple Access): Divides channels into sub-channels, allowing multiple users to transmit data simultaneously.
- BSS Coloring: Reduces interference by assigning a color code to differentiate overlapping networks.
- Target Wake Time (TWT): Reduces power consumption by scheduling communication times between devices and access points.
- Multi-User Capabilities: Enhanced MU-MIMO and uplink/downlink OFDMA.
- Security Enhancements: WPA3 encryption for stronger security protocols.
(Refer to WiFi 6 tutorial and difference between WiFi 6 and WiFi 6E for more details.)
What is WiFi 7?
WiFi 7 is poised to revolutionize wireless technology, pushing the boundaries of speed, low latency, and efficiency. It’s designed for emerging applications like immersive virtual reality, 8K video streaming, and cloud-based gaming. WiFi 7 aims to meet the growing demands of high-bandwidth activities and an increasing number of connected devices. With enhanced capabilities like multi-link operation (MLO) and wider channels, WiFi 7 promises unparalleled performance and reliability.
Here are the technical specifications of WiFi 7 concerning the RF, PHY, and MAC layers:
1. PHY (Physical Layer)
- Modulation Scheme: Uses 4096-QAM (Quadrature Amplitude Modulation) for significantly higher throughput compared to WiFi 6/6E’s 1024-QAM.
- Channel Widths: Introduces 320 MHz channels, doubling the 160 MHz width of WiFi 6E.
- Data Rate: Theoretical maximum data rates up to 46 Gbps (approximately 4.8x faster than WiFi 6E).
- Spatial Streams: Supports up to 16 spatial streams, further boosting throughput.
- MIMO: Advanced MU-MIMO, supporting more simultaneous users with improved performance.
- FEC (Forward Error Correction): Likely incorporates LDPC and enhanced coding schemes for better error correction at high speeds.
2. RF (Radio Frequency)
- Frequency Bands: Operates in 2.4 GHz, 5 GHz, and 6 GHz bands, with expanded bandwidth in the 6 GHz spectrum.
- Channel Availability: Expanded use of 160 MHz and 320 MHz channels in the 6 GHz band, offering more non-overlapping channels.
- Multi-Link Operation (MLO): Enables simultaneous use of multiple frequency bands (e.g., 5 GHz and 6 GHz) to optimize throughput, latency, and reliability.
- Power Levels: Supports similar power levels to WiFi 6E but with further optimizations for efficiency.
3. MAC (Medium Access Control)
- Multi-Link Operation (MLO): One of the standout features of WiFi 7, allowing devices to transmit and receive data across multiple frequency bands at once, enhancing performance, reducing latency, and improving redundancy.
- Preamble Puncturing: Allows WiFi 7 to puncture portions of the channel that are subject to interference, improving spectrum utilization and overall throughput.
- OFDMA Enhancements: Optimized OFDMA for improved efficiency and lower latency, especially in dense environments.
- Enhanced Multi-User MIMO: Improved handling of more devices in both the uplink and downlink, allowing for more efficient communication between multiple clients and access points.
- Target Wake Time (TWT): Further optimizations to minimize power consumption, particularly for IoT and mobile devices.
- QoS (Quality of Service): Enhancements to support emerging use cases like 8K video streaming, AR/VR, and low-latency gaming.
Comparison Between WiFi 6E and WiFi 7
The following table compares WiFi 6E and WiFi 7 regarding data rate/speed, bandwidth, latency, and more:
Features | WiFi 6E | WiFi 7 |
---|---|---|
Standard | IEEE 802.11ax Extended | IEEE 802.11be |
Launch date | 2021 (WiFi 6E) | 2024 (To be published) |
Data rate or Theoretical speed (Maximum) | Up to 9.6 Gbps | Up to 46 Gbps |
Frequency Bands | 2.4 GHz, 5 GHz , 6 GHz | 1 to 7.25 GHz (Includes 2.4, 5 and 6 GHz bands) |
Security | WPA 3 | WPA 3 |
Channel Bandwidth | Up to 160 MHz | Up to 320 MHz |
Modulation | 1024 QAM | 4096 QAM |
MIMO | Up to 8x8 MU-MIMO | Enhanced MU-MIMO |
Resource Allocation | Single RU | Multi-RU |
Latency | Lower (Due to 6 GHz) | Ultra-low using MLO feature |
MLO (Multi-Link Operation) | Not supported | Supported |
Key use cases | Low latency applications, less congestion | 8K video, AR/VR, low latency gaming |
Summary
Wi-Fi 7 represents a significant step forward in wireless technology, designed for future high-performance needs, while Wi-Fi 6E is excellent for today’s bandwidth and latency requirements.
