What is a Waveguide? (Introduction)

A waveguide is a structure designed to transfer electromagnetic energy from one point to another. Electromagnetic (EM) waves propagate lengthwise through this hollow, conductive structure. Think of it as a coaxial cable, but without the center conductor.

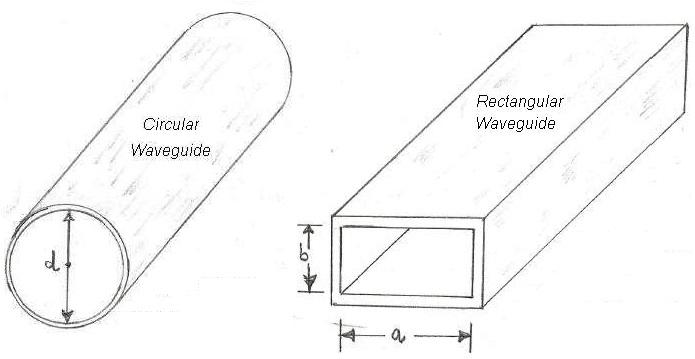

Waveguides act as High Pass Filters (HPF) for microwave frequencies and are considered passive microwave devices. They come in various shapes, including rectangular, circular, and elliptical. The first two types are illustrated below:

waveguide

Waveguide structures support two primary EM modes:

  • Transverse Electric (TE) Mode: The electric field is perpendicular to the direction of wave propagation.
  • Transverse Magnetic (TM) Mode: The magnetic field is perpendicular to the direction of wave propagation.

It’s important to note that the Transverse Electric and Magnetic (TEM) mode cannot exist within a waveguide. This mode is only possible in transmission lines that have two conductors.

Benefits (Advantages) of Waveguides

Waveguides offer several advantages over coaxial cables and two-wire transmission lines. Here are some key benefits:

  • Lower Losses: Waveguides support EM mode propagation with significantly lower losses.
  • Excellent Shielding: The EM fields are confined within the waveguide’s walls, providing shielding from external RF interference. This makes waveguides highly immune to outside disturbances.
  • High Power Handling: Waveguides boast a high power handling capacity.
  • Low Attenuation: EM waves experience lower attenuation for a given cutoff wavelength when traveling through a waveguide.
  • Easy Installation: The simple structure of waveguides simplifies installation in microwave transmission systems.

Drawbacks (Disadvantages) of Waveguides

Despite their advantages, waveguides also have some disadvantages:

  • Not Suitable for Low Frequencies: Waveguides are not practical for use at lower frequencies due to their increased physical dimensions at these frequencies.
  • Bulky Size and Weight: Waveguides can be quite bulky and heavy, especially at lower frequencies.
  • Cost: Waveguides are often not the most economical choice.
  • Lack of Flexibility: Rigid waveguides lack flexibility. While flexible waveguides exist, they are used for applications where some flexibility is necessary.
  • Narrowband Operation: Waveguides typically support a narrower band of operation compared to some other transmission line types.
  • No TEM Mode: As mentioned earlier, TEM mode propagation is not possible in waveguides.
  • Polarization Issues: In rectangular waveguides, the polarization of the EM wave is fixed. While circular waveguides offer the possibility of altering polarization, this can be affected by minor irregularities in the surface walls.
