IoT Interoperability: A Deep Dive into Challenges and Testing

iot
interoperability
testing
standards
wireless sensor networks

This article explores the concept of IoT interoperability, covering interoperability tests and the challenges involved in ensuring different IoT devices can work together seamlessly.

Interoperability: The Core Idea

The primary goal of interoperability is to confirm that independent products, all built to the same standard, can function together within a system without encountering problems. Imagine it like this:

  • Example 1: A GSM base station made by Ericsson should work flawlessly with a GSM mobile phone from Samsung.
  • Example 2: Generally, base stations and mobile devices, even if manufactured by different companies adhering to the same standard (like GSM), should be able to co-exist and operate effectively within a cellular network.

IoT Interoperability: Bridging the Gap Between Different Standards

IoT interoperability takes this idea a step further. It aims to verify that independent products built to different standards can still communicate and operate together in an IoT ecosystem. This is crucial because IoT networks often incorporate devices based on a variety of different standards.

  • Example: A Zigbee-based sensor needs to be able to share data and work effectively with a Bluetooth-enabled gateway or a device using 6LoWPAN.

Interoperability tests are essential for a few key reasons:

  • Ambiguities and Errors: Standards documents may contain errors or ambiguities. In some cases, the standards themselves might be incompatible.
  • Human Interpretation: Developers may make mistakes when coding to a specific standard, or they might interpret the standard differently, leading to implementation variations.
  • Network Differences: Networks may use different traffic queuing methods and other technologies that can impact interoperability.

IoT interoperability

Interoperability Testing: Ensuring Compatibility

Interoperability testing is a method used to determine the extent to which two or more implementations can function together across a range of applications and a specific communication medium.

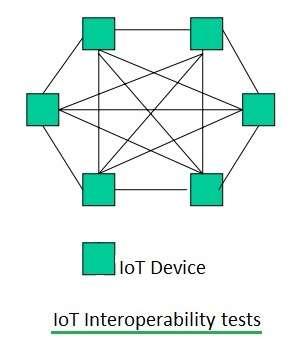

As illustrated in Figure 1, interoperability testing is most effective when conducted on single pairs of products. When you have N interconnected products, there are (N2 - N) / 2 distinct product pair combinations to test.

IoT Interoperability Challenges

As highlighted in the context of cellular IoT, the Internet of Things typically involves products adhering to diverse standards such as Zigbee, Z-Wave, Bluetooth, GSM, LTE, and more.

The complexity of IoT interoperability testing presents a significant challenge. To ensure the success of IoT projects, test specifications must be meticulously developed and implemented.
