TLS vs SSL: Understanding the Differences in Encryption Protocols

This page dives into the comparison of TLS (Transport Layer Security) and SSL (Secure Sockets Layer) encryption types, highlighting their key differences. We’ll also explore the evolution of these protocols, examining TLS versions 1.0, 1.1, and 1.2, as well as SSL versions V1, V2, V3, and V3.1.

Introduction:

Both TLS and SSL protocols operate between the TCP layer and the application layer in the network stack. Think of them as a security sublayer residing just above Layer 4. These encryption protocols ensure data communication security across computer networks. They’re essential for various applications like email, web browsing, VoIP, and other messaging services. These protocols are vital in client-server applications, providing secure communication channels free from intrusion and tampering.

Both TLS and SSL encryption protocols establish a secure transport connection between applications, such as a web server and a browser. The core objectives of TLS/SSL are:

• Session Establishment: Negotiating algorithms, exchanging secrets, and authenticating the communicating parties to set up a secure session.
• Secure Data Transfer: Encrypting application data using symmetric encryption algorithms and ensuring data integrity with techniques like keyed message authentication codes.

What is TLS Encryption?

• TLS stands for Transport Layer Security.
• TLS uses a record protocol for transferring application data and TLS-related information.
• A secure session is established through a handshake protocol.

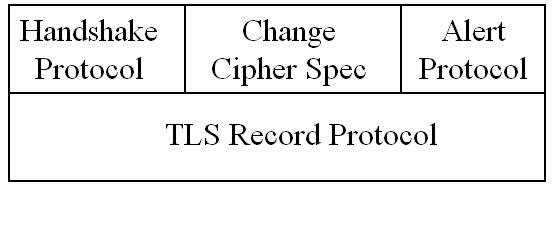

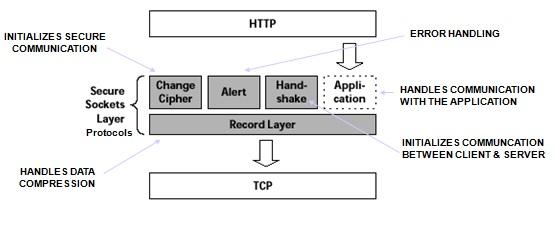

Other layers within TLS are similar to SSL, and TLS 1.0 is essentially equivalent to SSL V3.1. The architecture is illustrated in the figures above.

Differences between TLS Versions: TLS 1.0, TLS 1.1, TLS 1.2

Here’s a table summarizing the key features of different TLS versions:

What is SSL Encryption?

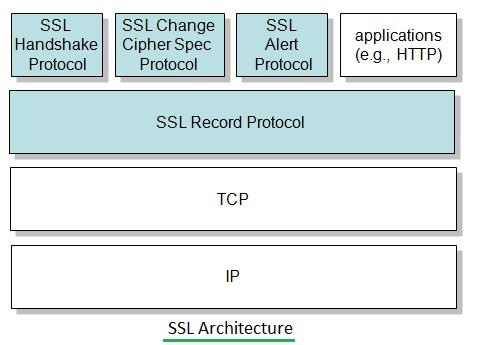

SSL stands for Secure Socket Layer. It was initially developed by Netscape. SSL comprises several components, including the handshake protocol, record protocol, alert protocol, and change cipher spec protocol.

The functions of these components are as follows:

• SSL Handshake Protocol: Negotiates security algorithms and parameters, handles key exchange, and performs server authentication (optionally client authentication).
• SSL Record Protocol: Handles fragmentation, compression, message authentication and integrity protection, and encryption.
• SSL Alert Protocol: Transmits error messages, including fatal alerts and warnings.
• SSL Change Cipher Spec Protocol: A single message signaling the end of the SSL handshake protocol.

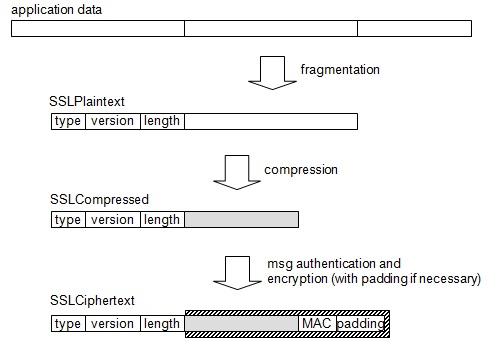

The figure above illustrates how the application layer data is processed by the SSL record protocol. As shown, the protocol performs three main functions: fragmentation, compression, and message authentication with encryption.

Here’s a breakdown of the header fields:

• Type: Indicates the higher-level protocol used to process the enclosed fragment. Possible types include:
  • change_cipher_spec
  • alert
  • handshake
  • application_data
• Version: Specifies the SSL version (currently 3.0).
• Length: Indicates the length (in bytes) of the enclosed fragment or compressed fragment. The maximum value is $2^{14} + 2048$.

Differences between SSL Versions: SSL V1, SSL V2, SSL V3, SSL V3.1

The following table summarizes the features of different SSL versions:
