Zero-Drift Op Amps: Advantages and Disadvantages

op amp
zero drift
analog
amplifier
instrumentation

This article explores the benefits and drawbacks of zero-drift operational amplifiers (Op Amps).

What is a Zero-Drift Op Amp?

Zero-drift Op Amps are specifically designed to provide ultra-low input offset voltage. They offer near-zero input offset voltage drift over time and temperature. This type of Op Amp minimizes input offset voltage and its drift by automatically correcting the offset voltage.

They can be designed using one of the following architectures:

  • Auto-zero Op Amp
  • Chopper-stabilized Op Amp
  • A combination of the above two

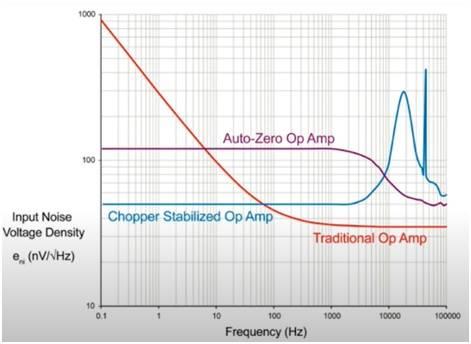

Zero drift op amp architectures

Image Courtesy: Microchip Technology

Zero-drift Op Amps are commonly used in applications requiring high output accuracy at small differential voltages, such as:

  • Precision strain gauges
  • Weight scales
  • Thermopiles
  • Thermocouples
  • Bridge sensor interfaces
  • Current shunt measurements

Key manufacturers of zero-drift Op Amps include Analog Devices, Texas Instruments (TI), ON Semiconductor, Microchip Technology Inc., and ABLIC Inc.

Advantages of Zero-Drift Op Amps

Here are the key benefits of using zero-drift Op Amps:

  • Low Input Offset Voltage: Offers a very low input offset voltage, leading to increased accuracy.
  • High Common-Mode Rejection Ratio (CMRR): Provides excellent rejection of common-mode signals.
  • High Power Supply Rejection Ratio (PSRR): Exhibits high immunity to variations in power supply voltage.
  • High Open-Loop Gain: Offers a very high open-loop gain which is crucial for amplifying weak signals.
  • Low Drift Over Temperature and Time: Maintains stability and accuracy despite changes in temperature and time.
  • Low Noise and Distortion: Delivers no 1/f noise, low distortion, and low broadband noise.
  • Simple and Cost-Effective Construction: Relatively simple to construct and can be manufactured at a low cost.
  • Wide Bandwidth and Low Ripple (Auto-Zero Type): Auto-zero architectures provide wide bandwidth and minimal ripple.
  • Low Power Consumption (Chopper-Stabilized Type): Chopper-stabilized architectures typically consume less power.

Disadvantages of Zero-Drift Op Amps

While zero-drift Op Amps offer numerous advantages, they also have some drawbacks:

  • Higher Power Consumption (Auto-Zero Amplifier): Auto-zero amplifiers can consume more power compared to other designs.
  • Higher Ripple (Chopper-Stabilized Amplifier): Chopper-stabilized amplifiers can produce higher ripple in the output.
  • High Low-Frequency Noise (Auto-Zero): Auto-zero architectures can produce high low-frequency noise due to aliasing effects.

Conclusion

The choice between auto-zero, chopper-stabilized, or a combination of both types of zero-drift operational amplifiers depends on various factors such as bandwidth, noise requirements, power consumption limitations, and acceptable ripple levels. Careful consideration of these factors is crucial for selecting the optimal Op Amp for a specific application.
