SiC MOSFET: Silicon Carbide MOSFET Explained

sic mosfet
power electronics
silicon carbide
semiconductor
high temperature

A SiC MOSFET (Silicon Carbide Metal-Oxide-Semiconductor Field-Effect Transistor) is a power electronics transistor that uses silicon carbide as its semiconductor material. This gives it some significant advantages over traditional silicon-based MOSFETs.

Here are some key features and benefits:

SiC MOSFET

Key Features

  • Material: Silicon Carbide (SiC) is the core semiconductor material.
  • Structure: The basic structure is similar to conventional MOSFETs, featuring a gate, drain, and source.

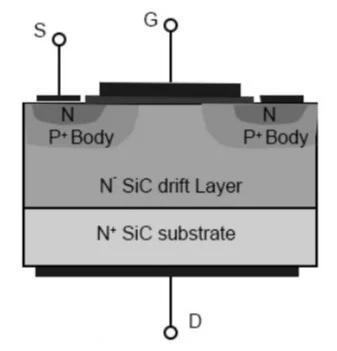

  • The figure above depicts a cross section of a SiC MOSFET device.

Applications of SiC MOSFETs

SiC MOSFETs are finding their way into a variety of applications:

  • Electric Vehicles (EVs): Used in power inverters and chargers for improved efficiency and reduced weight.
  • Industrial Power Supplies: Found in high-efficiency power supplies for industrial equipment.
  • Renewable Energy Systems: Employed in solar inverters and wind turbine converters to maximize energy capture.
  • Aerospace and Defense: Preferred in aerospace environments where high reliability and temperature tolerance are critical.

Benefits and Advantages of SiC MOSFETs

Here’s a breakdown of the advantages these MOSFETs offer:

  • Lower Losses: SiC MOSFETs boast lower on-resistance and faster switching speeds. This translates to reduced conduction and switching losses, making them more efficient.
  • High-Temperature Operation: SiC can handle higher temperatures (up to 200-300°C) compared to silicon, making it suitable for high-power and high-temperature environments.
  • High-Voltage Capability: SiC MOSFETs can handle higher voltages (up to 1.7kV and beyond), making them ideal for high-voltage applications.
  • Superior Thermal Conductivity: SiC’s superior thermal conductivity allows for better heat dissipation and management, preventing overheating.
  • Enhanced Robustness and Reliability: They are more robust and reliable under extreme conditions compared to traditional silicon MOSFETs, contributing to longer lifespans.

Conclusion

Overall, SiC MOSFETs are being increasingly adopted across various industries due to their superior performance characteristics and significant efficiency improvements over traditional silicon MOSFETs.

Silicon carbide’s unique properties effectively address the limitations of silicon, making it a compelling choice for modern, high-performance semiconductor applications.
