RF Triplexer: Features, Working, Manufacturers, and Applications

An RF triplexer splits or combines signals across three frequency bands, enabling efficient communication. This article explores RF triplexers, their working principles, key features, and their importance in managing multiple frequency bands in communication systems. We will also delve into the manufacturers and applications of these triplexer devices.

As we know, multiplexers are circuits that perform a similar function to switches. For systems requiring a larger number of ports, multiplexers are often used in RF system designs instead of RF switches. In radio frequency designs, a multiplexer connects RF signals at the input and output ports.

There are various multiplexer types, such as duplexers, triplexers, quadplexers, and quintplexers, categorized based on the number of RF input ports they possess. All of these types share a single output port, to which any of the input ports can be connected based on simple control programming input.

The diplexer, triplexer, quadplexer, and quintplexer will have 2 ports, 3 ports, 4 ports, and 5 ports respectively, in addition to the output antenna port.

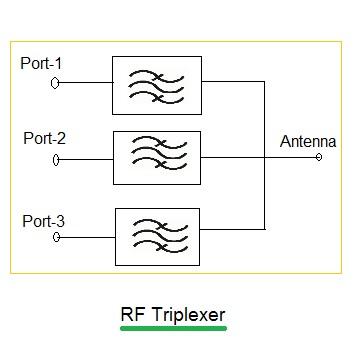

The figure above depicts the basic functional symbol of an RF triplexer. RF triplexers are widely used in radar systems and other wireless transmitter and receiver systems.

RF Triplexer Manufacturers

Here’s a list of some of the prominent RF Triplexer manufacturers:

• Wainwright Instruments, GmbH
• API Technologies Corp.
• Anatech Electronics
• Bird Technologies
• Microlab
• Johanson Technology, Inc.
• Orion Technologies

Conclusion

RF triplexers are vital components for effectively managing frequency bands in contemporary communication systems. They play a crucial role in ensuring signal clarity, reducing interference, and improving overall communication efficiency. They allow devices to operate on multiple frequencies simultaneously through a single antenna, making them indispensable in many applications.
