RF Mixers: Advantages and Disadvantages

This page explores the advantages and disadvantages of RF mixer devices, outlining the benefits and drawbacks associated with their use.

What is an RF Mixer?

Introduction: An RF mixer is a three-port RF signal mixing device that converts a signal from one frequency to another. It’s used to convert high frequencies to low frequencies and vice versa.

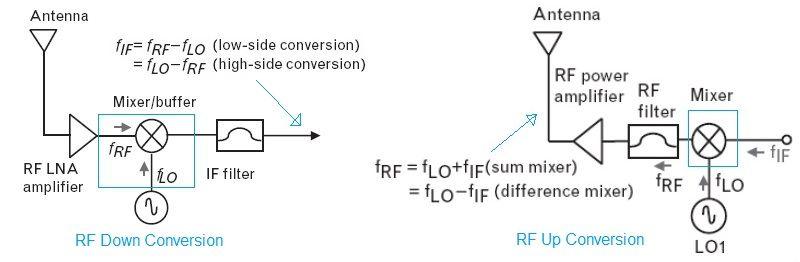

• In transmitters: It converts low-frequency signals to high-frequency signals.
• In receivers: It converts high-frequency signals to low-frequency signals.

RF Mixers are crucial in radio frequency (RF) transceivers, RF transmitters, and RF receivers for frequency conversion.

F_out of RF Mixer = f_input1 +/- f_input2

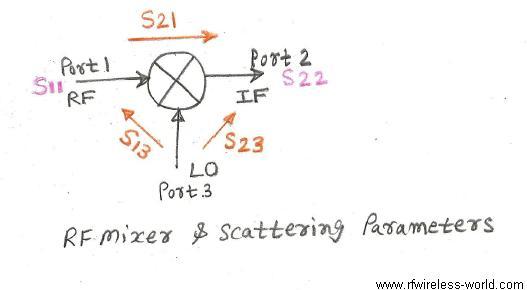

Figure-1 depicts the circuit symbol of an RF mixer. The three ports are commonly designated as LO (Local Oscillator), IF (Intermediate Frequency), and RF (Radio Frequency).

Return losses at the three ports are called S11, S22, and S33. Insertion losses between ports are called S21 (from port1 to port2), S23 (from port3 to port2), and S13 (from port3 to port1).

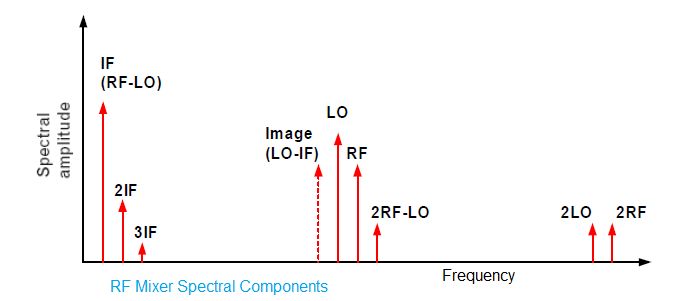

Figure-2 depicts RF mixer spectral components at the output. In addition to the sum and difference of the input frequencies, it generates harmonics and spurious frequencies, as shown. An RF filter is typically used at the output of the RF mixer to filter out the desired frequency components.

RF Mixer Selection Parameters

The following parameters are crucial when selecting an RF Mixer:

• Frequency Range: RF mixer datasheets specify IF, RF, and LO frequency ranges. Ensure these ranges align with your design requirements.
• Dynamic Range: The input power range over which the mixer performs effectively.
• LO Power Level: The required power level of the LO signal to achieve optimal RF mixer performance.
• Conversion Loss (dB): The amount of power lost during the frequency conversion process within the RF mixer.
• 1-dB Input Compression Level: The RF power level at which the conversion loss increases by 1 dB.
• TOI (Third-Order Intercept Point): A measure of the device’s nonlinearity. A high TOI is desirable to prevent the generation of unwanted harmonic frequencies and IMD products.
• Isolation: The isolation between the RF, LO, and IF ports. Higher isolation prevents interference from other RF signals.
• Other Parameters: VSWR (or return loss), Noise figure, size, cost, form factor, temperature dependency, package type, etc.

Advantages of RF Mixers

Here are the benefits of using RF Mixers:

• Frequency Conversion: Allows the same antenna to be used for transmitting and receiving multiple frequencies by converting the signal to the desired frequency.
• Increased SNR: Improves the Signal-to-Noise Ratio (SNR) of weak signals by mixing them with a high-power LO signal and translating them to a different frequency.
• Increased Receiver Sensitivity: Enhances the sensitivity of the receiver by mixing weak signals with a high-power LO signal.
• Cost-Effective: Designed using cheaper components, making them relatively inexpensive.
• Versatile Packaging: Available in various package types, such as SMT (Surface Mount Technology), plug-in with through-hole mounting with pins, and connectorized versions. This makes them easy to use in RF circuit designs, PCB mounting, and testing.

Disadvantages of RF Mixers

Here are the limitations of using RF Mixers:

• Signal Loss: RF mixers introduce signal loss during the frequency conversion process. It’s important to check the conversion loss when designing RF circuits.
• Limited Frequency Range: RF mixers support a limited frequency range. Choose mixers according to the desired frequency range at their three ports.
• Nonlinearity: RF mixers are nonlinear RF components, leading to the production of unwanted harmonic frequencies and Intermodulation (IMD) products. Select RF mixers with higher isolation between ports to mitigate this. RF filters are often required to suppress undesired frequencies at the output in RF circuit designs. The use of filters increases the overall cost of the RF system.
• Increased Noise Figure (NF): RF Mixers increase the Noise Figure (NF) of the circuit, which degrades the SNR (Signal-to-Noise Ratio). This can lower the performance of the RF circuit. Therefore, proper amplifier devices are also used in the RF chain to meet the RF signal gain requirement of the RF circuit.
