RF Filter Selection: A Practical Guide Based on Specifications

Choosing the right RF filter is essential for effective signal management. This guide highlights key parameters and types to simplify your decision-making process. It covers RF filter selection criteria based on technical specifications, mentioning common RF filter specifications to consider when selecting or buying an RF filter for your needs.

RF Filter Selection Guide

The following guidelines should be followed while selecting an RF filter as per your requirements:

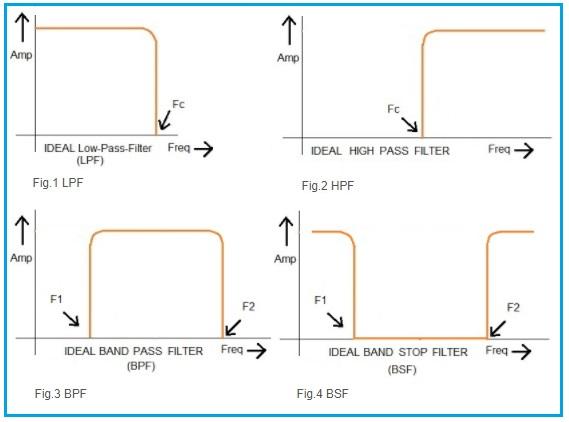

• Choose the type of filter required for the application: Bandpass, Bandstop, Lowpass, or Highpass.
• Choose electrical specifications (mentioned below).
• Choose mechanical specifications (mentioned below).
• Choose the filter type as per ripple requirements: Chebyshev, Butterworth, Bessel, Gaussian, etc.
• Choose the form of the filter: waveguide, dielectric resonator, microstrip, cavity, inter-digital, BAW (Bulk Acoustic Wave), SAW (Surface Acoustic Wave), LC, LTCC (Low Temperature Co-fired Ceramic), etc.
• Choose a popular vendor or manufacturer from Mini Circuits, StratEdge, Integrated Microwave, Synergy Microwave Corp., Bree Engineering, Wainwright Instruments GmbH, Lorch Microwave, Micro Lambda Wireless, Omniyig, etc.

Use the online RF filter search tool provided on the respective manufacturer’s website to easily find one as per desired specifications.

RF Filter Technical Specifications

The following are the electrical parameters to be considered in RF filter selection:

• Frequency Range of operation
• Passband insertion loss
• Out-of-Band Rejection
• Bandwidth
• Return Loss or VSWR
• Power Handling capacity
• Shape Factor or Selectivity

The following are the mechanical parameters to be considered:

• Physical Size
• Package type
• Type of connectors and position

Conclusion

Understanding your system’s requirements is key to selecting the right RF filter, ensuring optimal performance and reliability.
