This page explores the advantages and disadvantages of RF adapters, outlining their benefits and drawbacks.

What are RF Adapters?

Introduction: RF adapters are devices that provide connectivity between different types of connectors or cables. They allow RF signals to be routed without significant loss.

Essentially, they bridge the gap when you need to connect dissimilar RF interfaces.

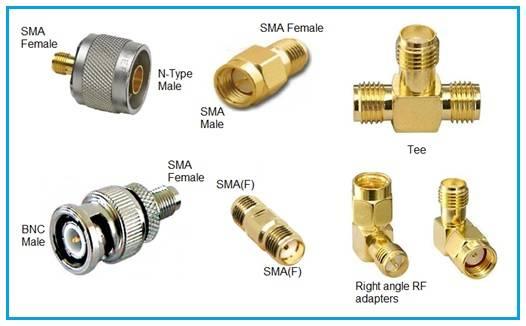

The figure below illustrates various types of RF adapters: SMA female to N-type male, BNC male to SMA female, SMA(F) to SMA(M), SMA(F) to SMA(F), a tee with SMA(F) on all three ports, and right-angle RF adapters.

For example, an SMA (F) to N-type (M) adapter is useful for interfacing RF cables or connectors that have an SMA (Male) connector on one end and an N-type (Female) connector on the other.

RF adapters

Key specifications to consider when selecting RF adapters:

  • Frequency range of operation
  • Insertion loss
  • Electrical length
  • VSWR/Return loss
  • Insertion Loss
  • Operating temperature range
  • Connector types

Benefits or Advantages of RF Adapters

Here are the main advantages of using RF adapters:

  • Connector Compatibility: They allow you to connect different types of connectors and cables. This is extremely useful when you have devices or systems with mismatched connectors.
  • Interoperability: Designed to ensure seamless connectivity between various devices.
  • Cost-Effective: RF adapters offer a much cheaper solution compared to buying entirely new cables or connectors.
  • Availability: RF adapters are readily available, which can save significant time during the manufacturing, testing, and measurement phases of RF device or system development.

Drawbacks or Disadvantages of RF Adapters

Here are the primary disadvantages to keep in mind when using RF adapters:

  • Signal Loss: RF adapters can introduce signal loss. It’s crucial to check the insertion loss specification before selecting an adapter.
  • Impedance Mismatch: Adapters can introduce impedance mismatches, so always check the VSWR (Voltage Standing Wave Ratio) or return loss specifications.
  • Durability: RF adapters might not be as robust or durable as original RF connectors and RF cables.
  • Weight: They add weight to the overall system design, which is a factor to consider in lightweight applications.
  • Phase Shift: Adapters can introduce a phase shift to the RF signal. Always verify the electrical length of the RF adapter to account for this.
