This article explores the differences between relays and transistors, two fundamental components used in electronic circuits.

What is a Relay?

  • A relay is an electromechanical switch. It controls a circuit by opening and closing contacts, allowing it to operate other devices within the same or different electric circuits.
  • Relays are typically used in circuits with lower ampere capacities, usually up to a maximum of 20A.
  • They are generally smaller in size compared to other switching devices like contactors.
  • Relays usually have at least two contacts, which can be either Normally Open (NO) or Normally Closed (NC).
  • Relays find applications in control circuits, automation systems, protection mechanisms, and various switching circuits.

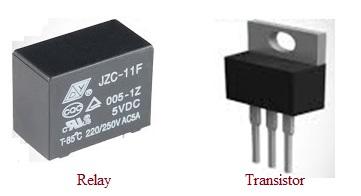

Relay vs Transistor

What is a Transistor?

  • Transistors come in two main types: NPN and PNP. They can function as both amplifiers and switches within a circuit.
  • A transistor has three terminals: Base, Emitter, and Collector.
  • When used as a switch, a transistor operates in two modes: cut-off and saturation.
    • In cut-off mode, the transistor acts like an open switch, blocking current flow.
    • In saturation mode, it acts like a closed switch, allowing current to flow freely.
  • For an NPN transistor:
    • Applying a negative DC bias voltage to the base puts it in cut-off mode.
    • Applying a positive voltage to the base puts it in saturation mode.
  • Refer to application notes for more information on using a Transistor as a switch.

Relay vs. Transistor: A Detailed Comparison

The following table highlights the key differences between relays and transistors:

SpecificationsRelayTransistor
Power supplyCan work with both AC and DC.Can work with DC only.
Power lossHas zero closed resistance.Has forward voltage drop, leading to power wastage.
ResistanceInfinite open resistance.Has leakage current, which can affect connected electronic circuits.
TemperatureCan operate at extreme temperatures.Operates up to approximately 95°C and slightly below 0°C.
Speed of operationMuch slower, operating at around 200 Hz.Can operate at MHz speeds.
Damaged byPrimarily damaged by overcurrent.Damaged by voltage spikes, overcurrent, etc.
IsolationVery high isolation from the control coil.Not isolated from the Base, Gate, or Trigger.
Wear outShorter mechanical wear-out contact life.Transistor switches almost never wear out.
ApplicationCan only be used to open and close circuits.Can amplify analog signals as well as function as a switch.
