This page covers the advantages and disadvantages of a Rat Race Coupler. It details the benefits and drawbacks of using this type of coupler in various applications.

What is a Rat Race Coupler?

Introduction:

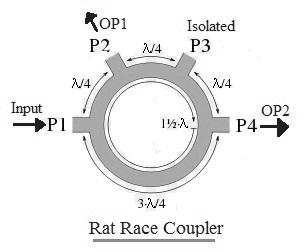

  • A Rat Race Coupler is a hybrid coupler featuring four ports, as illustrated, with specific wavelength relationships between those ports.
  • It can be implemented using microstrip, stripline, or waveguide technologies.
  • Typical applications include balanced mixers and amplifiers, antenna feed networks, and power combiners/dividers.

Rat Race Coupler

Benefits or Advantages of Rat Race Coupler

The following are the benefits of using a Rat Race Coupler:

  • Acceptable Return Loss: Offers acceptable return loss at its ports.
  • Good Isolation: Provides good isolation between its ports.
  • Amplitude/Phase Balance: Exhibits excellent amplitude and phase balance across a wide frequency range, such as the D band (2.20 to 3.30 GHz).
  • Magic Tee Functionality: Functions similarly to a magic tee, but without the need for a matching structure.

Drawbacks or Disadvantages of Rat Race Coupler

The following are the drawbacks of using a Rat Race Coupler:

  • Narrow Bandwidth: Has a relatively narrow bandwidth compared to some other coupler types.
  • Large Area: Occupies a larger area due to the 3λ/4 length between ports P1 and P4 on the bottom section. This can be a limitation in space-constrained microwave devices.
  • Construction-Specific Drawbacks: Its disadvantages are also tied to its construction method. Consider the drawbacks associated with microstrip lines, striplines, and waveguide structures.
