PMOS vs NMOS Transistors: Understanding the Key Differences

PMOS and NMOS stand for P-channel MOSFET transistor and N-channel MOSFET transistor respectively. These complementary transistors are used in electronic circuits to control the flow of electrical current. They are fundamental building blocks in digital logic circuits and analog signal processing circuits. In CMOS circuits, they work together to create efficient digital logic gates.

Structure and Symbol Diagrams of PMOS and NMOS

MOSFET-NMOS symbol vs PMOS symbol Figure-1 depicts symbols of N-channel MOSFET (NMOS) and P-channel MOSFET (PMOS).

The symbol for an NMOS transistor consists of an arrow pointing towards the gate, indicating the direction of electron flow when the transistor is ON. The symbol for a PMOS transistor is a circle with an arrow pointing away from the gate, indicating the direction of hole flow when the transistor is ON.

Figure-2 depicts NMOS structure diagram.

As shown, it consists of three layers of semiconductor materials viz. source, drain, and gate. A thin insulating layer of oxide separates the gate from the semiconductor material. The gate terminal is typically made of conductive material like metal or polysilicon.

Figure-3 depicts PMOS structure diagram.

A PMOS transistor has a similar structure to NMOS but with opposite polarity. As shown, it consists of source, drain, and gate terminals, but in PMOS, holes are the majority carriers. The gate-source voltage controls the flow of holes between the source and drain.

Characteristics

Figure-4 depicts NMOS and PMOS enhancement MOSFET characteristics.

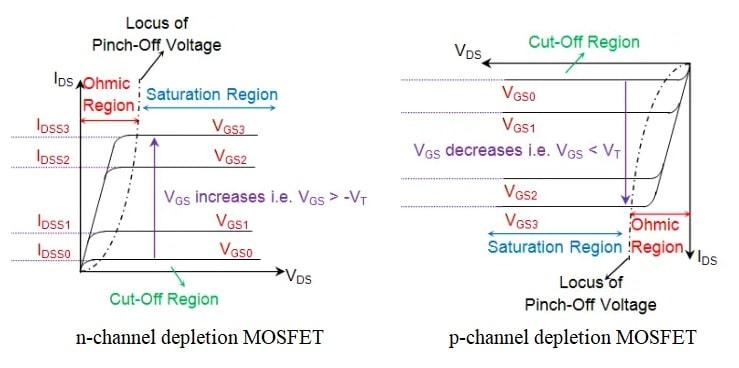

Figure-5 depicts NMOS and PMOS depletion MOSFET characteristics.

Difference between PMOS and NMOS

The following table compares PMOS vs NMOS MOSFET types with respect to various parameters.

Parameters	PMOS (P-Channel MOSFET)	NMOS (N-Channel MOSFET)
Carrier type	Majority carriers are holes (Positive)	Majority carriers are electrons (negative)
Operation	Conducts when Vgs < Vth (Gate < Source)	Conducts when Vgs > Vth (Gate > Source)
Symbol	Circular symbol with arrow pointing away from gate	Arrow symbol pointing towards the gate
Voltage levels	Positive gate source voltage (Vgs)	Negative gate source voltage (Vgs)
Logic level	Positive voltage represents logical ‘0’	Positive voltage represents logical ‘1’
Switching speed	Generally slower than NMOS	Generally faster than PMOS
Noise immunity	More noise immunity due to slower switching	Less noise immunity due to faster switching
Power consumption	Consumes more power when ON	Consumes less power when ON
Power supply polarity	Often used in circuits with negative power supplies	Often used in circuits with positive power supplies
Common use cases	Voltage level translators, analog circuitry	Digital logic gates, amplifiers in audio applications

Conclusion

We can infer the following differences between PMOS and NMOS MOSFET transistor types:

P-channel is much easier and cheaper to produce compared to an N-channel MOSFET device.
The N-channel MOSFET has a high packing density. This makes it faster for switching applications due to smaller junction areas and low inherent capacitances.
N-channel MOSFET is smaller for the same complexity compared to P-channel MOSFET.
Drain resistance of P-channel MOSFET is 3 times higher than an identical N-channel MOSFET device.
N-channel MOSFET has a high false turn-on possibility compared to a P-channel device. This is due to positively charged contaminants.
For a given drain current rating, P-channel MOSFET occupies a larger area compared to N-channel MOSFET. This is due to the fact that electron mobility is 2.5 times greater than the mobility of a hole.

In summary, NMOS and PMOS transistors have distinct carrier types and operate with opposite polarities. They are often used together to create complementary logic gates in digital circuits, taking advantage of their differences to minimize power consumption and improve performance.
