This page covers the basics of the Operational Amplifier (op-amp), its use as an inverting amplifier, non-inverting amplifier, summing amplifier, voltage comparator, and more. “Op-amp” stands for Operational Amplifier. Originally, op-amps were built using discrete components and were used in analog computers for functions like addition and division.

Nowadays, operational amplifiers are available in IC (Integrated Circuit) form and are used in a wide range of applications. A common use is as a high-gain DC and AC voltage amplifier. A typical op-amp device consists of about 20 transistors and a few resistors and capacitors.

Op-amp devices have the following basic properties:

Op-Amp Properties

  • A very high voltage gain: approximately 10510^5
  • A very high input impedance: typically about 10610^6 to 101210^{12} Ohms
  • A very low output impedance: About 100 Ohms

op-amp,operational amplifier

The following table shows the ideal and practical values of different op-amp properties.

Op-Amp Specifications

SpecificationsIdeal ValuePractical Value
Voltage Gain10610^6
Input Resistance10610^6 Ω or 1MΩ
Output Resistancezero10Ω to 100Ω
Bandwidth10610^6 Hz or 1 MHz
CMRR10610^6 or 120 dB
Slew Rate80 V/µsec

Operational Amplifier Working

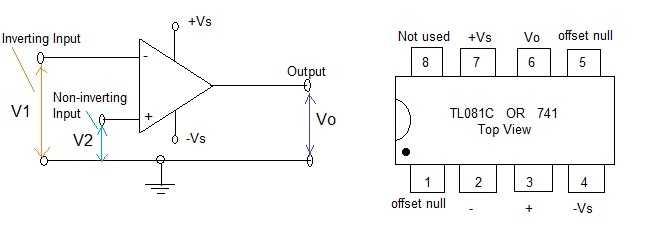

As shown in the figure, the op-amp has two inputs and one output. The non-inverting input is marked with ”+” and the inverting input with ”-” on the amplifier symbol.

The figure depicts a TL081C or 741 op-amp in IC form with pin details. The +/Vs+/-V_s voltage range is from +/5V+/-5V to +/15V+/-15V. Basically, an op-amp is a differential amplifier that amplifies the difference between the voltages V1V_1 and V2V_2 applied at its inputs.

There are three conditions, and the appropriate output is produced based on these:

  • If V2>V1V_2 > V_1, then VoV_o is positive.
  • If V2<V1V_2 < V_1, then V0V_0 is negative.
  • If V2=V1V_2 = V_1, then VoV_o should be zero.

In general, the output is given by:

Vo=Ao×(V2V1)V_o = A_o \times (V_2 - V_1)

Where, AoA_o is the open loop voltage gain.

As mentioned, there are many uses for op-amps, including:

  • Inverting amplifier
  • Summing amplifier
  • Non-inverting amplifier
  • Voltage comparator
  • Power supply applications
  • Integrated circuits for special applications, such as audio pre-amplifiers, audio power amplifiers, and high-frequency amplifiers.
