MLCC Capacitors: Advantages and Disadvantages

Multilayer Ceramic Capacitors (MLCCs) are ubiquitous in modern electronics, prized for their high reliability, compact size, and excellent performance. These capacitors are crucial for filtering, decoupling, and energy storage in diverse applications like smartphones, automotive systems, and industrial equipment. While MLCCs offer many benefits, certain limitations must be considered during design and implementation.

This page explores the key advantages and disadvantages of MLCC capacitors, including their applications and prominent manufacturers.

What is an MLCC Capacitor?

A Multilayer Ceramic Capacitor (MLCC) is a capacitor constructed from multiple layers of ceramic dielectric material alternated with layers of conductive electrodes. It’s widely used in electronic circuits for its small size, high capacitance, and excellent high-frequency performance.

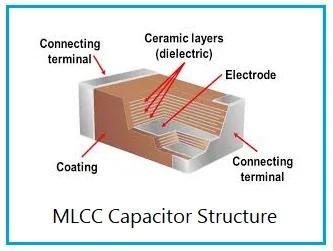

MLCC Structure

• Ceramic Layers: Thin layers of ceramic material act as the dielectric.
• Electrodes: Metallic layers, typically nickel or palladium, are interleaved between the ceramic layers.
• Encapsulation: The structure is encapsulated in a protective coating to shield it from environmental effects.

Key Features

• Compact Size: Suitable for miniaturized electronics.
• High Capacitance: Achieved through multiple dielectric layers and electrode plates.
• Low Equivalent Series Resistance (ESR): Provides efficient operation in high-frequency circuits.
• Wide Temperature Range: Can function from -55°C to +125°C or higher, depending on the grade.
• Non-Polar: Unlike electrolytic capacitors, MLCCs are non-polar and can be used in AC and DC circuits.

Applications

• Decoupling and Filtering: Used to reduce noise and stabilize voltage in power supply lines.
• Timing Circuits: Employed in oscillators and timing applications.
• High-Frequency Circuits: Essential in RF, microwave, and communication systems.
• Bypass Capacitors: Prevents signal interference in integrated circuits.

Advantages of Multilayer Ceramic Capacitors (MLCC)

Here are some of the benefits of MLCC capacitors:

1. Compact Size and High Capacitance: MLCCs offer a high capacitance-to-volume ratio, making them ideal for miniaturized electronic devices.

2. Wide Frequency Range: They perform well in both high-frequency and high-speed applications, such as RF circuits and power supplies.

3. Non-Polarized: MLCCs are non-polar, allowing them to be used in both AC and DC circuits without concern for polarity.

4. High Reliability: Their solid construction and robust ceramic materials make them highly reliable in demanding environments.

5. Stable Performance: MLCCs exhibit excellent thermal and electrical stability, maintaining performance over a wide range of temperatures and voltages.

Disadvantages of Multilayer Ceramic Capacitors (MLCC)

Here are some of the drawbacks of MLCC capacitors:

1. Voltage Coefficient: The capacitance can decrease significantly with an increase in the applied voltage, especially in high dielectric constant materials.

2. Mechanical Fragility: MLCCs are prone to cracking under mechanical stress or improper mounting techniques.

3. Temperature Dependency: Some dielectric materials used in MLCCs exhibit changes in capacitance with temperature variations.

4. Aging Effect: Over time, the capacitance of MLCCs may decrease due to the relaxation of the ceramic dielectric material.

5. Limited Energy Storage: Compared to electrolytic capacitors, MLCCs have lower energy storage capacity for a given size.

Popular Manufacturers

Several leading manufacturers specialize in producing MLCCs, each significantly contributing to the global electronics market. Here are some of the top MLCC manufacturers:

• Murata Manufacturing Co., Ltd.: A Japanese company renowned for its extensive lineup of ceramic capacitors, providing ideal solutions for various applications.

• Samsung Electro-Mechanics: Established in 1973 and based in Suwon, South Korea, this company is a leading manufacturer and supplier of MLCCs, chip resistors, and camera modules, serving industries like consumer electronics, automotive, and telecommunications.

• TDK Corporation: A Japanese multinational electronics company that produces a wide range of electronic components, including MLCCs, widely used in various electronic devices.

• Kyocera Corporation: A Japanese ceramics and electronics manufacturer offering a variety of electronic components, including MLCCs, known for their quality and reliability.

• Yageo Corporation: Following strategic acquisitions, including KEMET, Yageo has solidified its position as one of the top suppliers of MLCCs on the global stage.

Conclusion

Multilayer Ceramic Capacitors (MLCCs) are indispensable components in modern electronics, offering advantages like high reliability, small size, and cost-effectiveness. However, their limitations, including voltage sensitivity and susceptibility to mechanical stress, require careful consideration during the design process. By weighing the advantages and disadvantages, engineers can effectively utilize MLCCs to achieve optimal performance in electronic circuits while addressing potential challenges.
