This Parallel Plate Capacitor capacitance calculator helps you determine the capacitance between two parallel plates. We’ll also cover the formula used in the calculator.

What is a Parallel Plate Capacitor?

This type of capacitor is made up of two conducting plates separated by a small distance, as you can see in the figure below. The plates are parallel to each other. The space between them can be a vacuum or filled with a dielectric material that has a constant K.

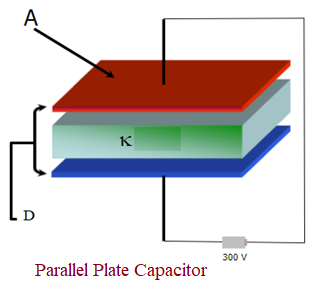

Parallel Plate Capacitor

Here, ‘A’ represents the area of each plate, and ‘D’ is the distance separating them. When a battery is connected, the two plates will hold charges of ‘+Q’ and ‘-Q’.

The capacitance ‘C’ of a parallel plate capacitor can be calculated as follows:

C=Q/V=K\*ε0\*A/DC = Q/V = K \*ε0 \* A/D

Parallel Plate Capacitor Calculator

Inputs

Outputs

This handy calculator uses the surface area, the distance between the plates, and the dielectric material as inputs to calculate the capacitance.

EXAMPLE:

INPUTS: K = 2.53, A = 0.5 mm2, D = 0.005 mm

OUTPUT: Capacitance = 2.24 x 10-12 farads or 2.24 pF

Equation or Formula Used for the Parallel Plate Capacitor Capacitance Calculator

The following equation or formula is used in this Parallel Plate Capacitor capacitance calculator:

C=K\*ε0\*A/DC = K \* ε0 \* A/D

Where:

  • K = Dielectric constant of the material (refer to Table 1 and Table 2 below to select the appropriate value for the material)
  • ε0 = 8.854 x 10-12
  • A = Overlapping surface area of the plates
  • D = Distance between the plates

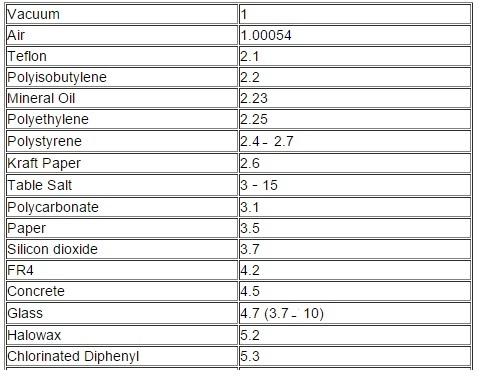

dielectric constant table1

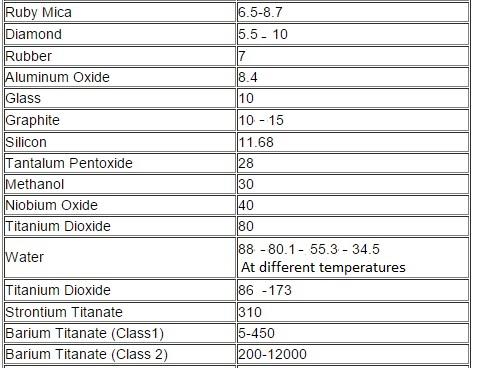

dielectric constant table2
