This page explores the pros and cons of the Magic Tee, covering its benefits and drawbacks.

What is a Magic Tee?

Introduction:

The magic tee (also known as a magic-T or hybrid-tee) is a type of hybrid or 3-dB coupler. It’s essentially a combination of an E-plane tee and an H-plane tee.

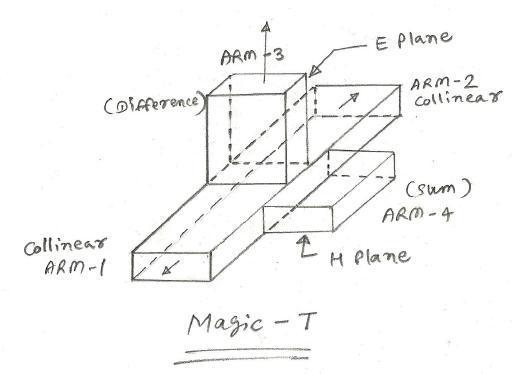

As shown in Figure 1, Arm-4 forms the H-plane tee, while Arm-3 forms the E-plane Tee with Arm-1 and Arm-2. Arms 1 and 2 are called the side or collinear arms. Arm-3 is referred to as the “difference port,” and Arm-4 is called the “sum port.”

Magic Tee

To function correctly, a magic tee should incorporate an internal matching structure. This structure typically consists of a post inside the H-plane tee and an inductive iris inside the E-plane limb.

Magic Tees are used in a wide variety of applications, such as:

  • Bridges for impedance measurement
  • Duplexers
  • Power splitters
  • Power combiners
  • Mixers
  • Circulators

Advantages of Magic Tee

Here are the benefits you can expect when using a Magic Tee:

  • Decoupled Output Ports: The output ports are decoupled from each other. This means the power delivered to one output port doesn’t depend on the termination at the other ports.

  • Perfectly Matched Output Ports: In a magic tee, the output ports are perfectly matched. Therefore, the power division between them doesn’t depend on the terminations connected to any of the magic tee’s ports. This is unlike E-plane and H-plane tees, where power division depends on terminations at the respective output ports.

  • Small Size: They can be made relatively compact.

  • Large Bandwidth: They can operate over a wide range of frequencies.

Disadvantages of Magic Tee

Here are some of the drawbacks associated with Magic Tees:

  • Reflections and Power Loss: When energy propagates through the arms of the magic tee, it can encounter reflections due to impedance mismatches at junctions. This leads to power loss.

  • Standing Waves and Arcing: Reflections can also cause the generation of standing waves, which, in turn, can lead to internal arcing. This limits the maximum power handling capability of the device.

  • Narrow and Close Lines: The internal lines within the magic tee can be very narrow and closely spaced.
