Active vs. Passive Snubber Circuits: A Detailed Comparison

snubber circuit power electronics circuit design component electronic

Snubber circuits are essential in electronic circuits to safeguard semiconductor devices, such as power switches and diodes, from voltage spikes, transients, and other unwanted effects. These circuits are designed to dampen or absorb energy, preventing excessive voltage or current stress on the components. Snubber circuits can be broadly categorized into active and passive types, based on their operation and the components they use.

Passive Snubber Circuits

A basic passive snubber circuit typically consists of a resistor (R) in series with a capacitor (C), connected in parallel across a power semiconductor device (like a diode or a switch). The resistor and capacitor values are carefully selected based on the circuit’s characteristics and the switching speed of the device. This circuit effectively absorbs energy and suppresses voltage spikes during switching events.

Figure 1 illustrates common passive snubber circuits, including R-C, R-C-D, and Resistor (‘R’) - Inductor (‘L’) types.

Passive Snubber Circuits Image alt: Passive Snubber Circuits

Let’s look at a few common configurations:

  • RC Snubber: This circuit is particularly effective at damping high-frequency ringing and voltage spikes.
  • RL Snubber: The inductor in this circuit aids in absorbing energy and provides additional damping.
  • RCD Snubber: The diode allows the capacitor to charge rapidly during one voltage polarity, while the resistor discharges it more slowly during the opposite polarity.

Advantages and Disadvantages of Passive Snubber Circuits

Advantages:

  • Simplicity: Passive snubber circuits are straightforward and use fewer components.
  • Cost: They are generally less expensive than active snubber circuits.

Disadvantages:

  • Lack of Dynamic Control: Passive snubber circuits may struggle to adapt to varying operating conditions.
  • Efficiency: They can be less efficient in certain scenarios compared to active snubbers.

Active Snubber Circuits

Active snubber circuits incorporate additional active components such as transistors or operational amplifiers. They provide dynamic control and adjustment of the snubbing effect based on operating conditions.

Active snubber clamp flyback Image Courtesy: Infineon Technologies AG Image alt: Active snubber clamp flyback

In the Flyback converter topology, energy is stored in the transformer during the switch-on time and released during the switch-off time. This process can lead to voltage spikes and ringing. The Active Clamp Flyback adds an active clamp circuit to absorb the energy stored in the leakage inductance of the transformer. The active clamp circuit typically includes a switch, a capacitor, and a diode. The switch is turned on during the flyback diode’s reverse recovery time, providing a path for the energy to dissipate.

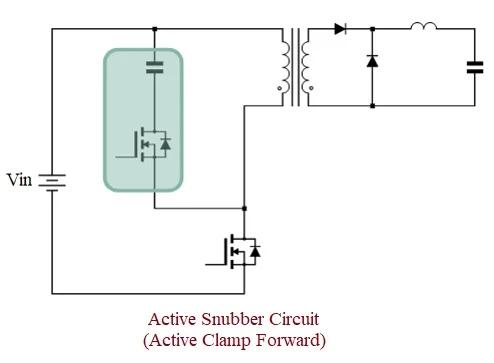

Active snubber clamp forward Image Courtesy: Infineon Technologies AG Image alt: Active snubber clamp forward

The Forward converter topology transfers energy during both the switch-on and switch-off times, providing continuous energy transfer. The Active Clamp Forward introduces an active clamp circuit to absorb energy stored in the transformer’s leakage inductance. The active clamp typically includes a switch, a capacitor, and a diode, similar to the Active Clamp Flyback.

Advantages and Disadvantages of Active Snubber Circuits

Advantages:

  • Dynamic Control: Allows for more efficient and adaptable snubbing.
  • Optimal Performance: Can be designed to provide optimal performance under varying operating conditions.

Disadvantages:

  • Complexity: Active snubber circuits are more complex due to the inclusion of active components.
  • Cost: The additional active components can increase the cost of the snubber circuit.

Active Snubber vs. Passive Snubber: Key Differences

The following table highlights the key differences between active and passive snubber circuits:

FeaturesActive SnubberPassive Snubber
OperationActively controls and manages energy dissipation, allowing dynamic adjustment based on operating conditions.Absorbs and dissipates energy using fixed characteristics of passive components.
ComponentsIncludes active components (e.g., transistors, op-amps) in addition to passive components (resistors, capacitors).Comprises only passive components (resistors, capacitors, sometimes inductors).
Control and AdaptabilityDynamic control allows for efficient adaptation to varying operating conditions.Lack of dynamic control; snubbing effect is fixed based on passive component characteristics.
ComplexityMore complex due to the inclusion of active components.Simpler design with fewer components, less complexity.
CostTypically more expensive due to active components.Generally less expensive as it relies on passive components.
EfficiencyCan be more efficient in certain scenarios with dynamic operating conditions.May be less efficient in dynamic conditions compared to active snubbers.
ApplicationsSuitable for applications with varying or dynamic operating conditions, where dynamic control is beneficial.Suitable for simpler applications and cost-sensitive designs where dynamic control is not a critical requirement.

Conclusion

The choice between active and passive snubber circuits depends on the specific requirements of the application, including the characteristics of the power device, the switching frequency, and the desired level of control. The selection of component values in the snubber circuit is critical and requires careful consideration of the circuit parameters to achieve effective snubbing. Ultimately, the decision hinges on balancing complexity, cost, and performance to align with the specific needs of the electronic circuit or system.
