RF Front-End Modules: Advantages and Disadvantages

An RF (Radio Frequency) front-end module is a crucial element in wireless communication systems, responsible for managing the transmission and reception of RF signals. Typically, it sits between the antenna and the baseband modem (modulator-demodulator).

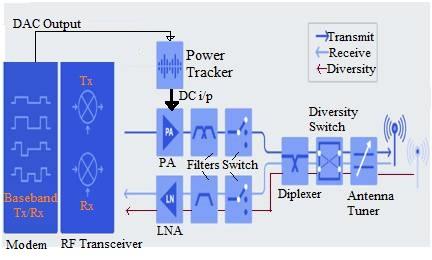

The RF front-end module brings together different components – filters, amplifiers, switches, and matching circuits – to manage and optimize the RF signal’s path.

Key Components of RF Front-End Modules

• Low-Noise Amplifier (LNA): Amplifies weak incoming signals while keeping added noise to a minimum, improving the signal-to-noise ratio (SNR).
• Power Amplifier (PA): Boosts the power of the transmitted signal, ensuring it can travel longer distances or navigate obstacles.
• Filters: Select specific frequency bands and block out-of-band noise or interference, improving signal clarity and reducing unwanted signals.
• RF Switches: Direct the signal flow between different paths, for instance, between multiple antennas or frequency bands.
• Duplexers/Diplexers: Enable simultaneous transmission and reception of signals by separating transmit and receive paths within the same frequency band.

RF front end modules are common in devices like smartphones, tablets, Wi-Fi routers, IoT devices, and other wireless communication systems to ensure RF signals are handled efficiently and effectively.

Advantages of RF Front End Modules

Here are the benefits of using RF Front End Modules:

1. By combining multiple RF components into a single module, RF front-end modules help reduce the overall size and complexity of wireless devices. This makes them ideal for applications where space is limited, such as in smartphones.
2. Integrated RF front-end modules are optimized to work together, resulting in improved performance metrics like sensitivity, output power, and signal quality. This leads to better overall device performance.
3. Using RF front-end modules simplifies the design process for device manufacturers. These modules are pre-engineered to handle complex RF signal management, reducing the need for extensive RF design expertise.
4. Integrating multiple functions into a single module can reduce the overall component count and associated costs, including manufacturing and assembly expenses.
5. Modules are tested and tuned for optimal performance as a single unit, leading to higher reliability and reduced susceptibility to performance variations compared to designs using discrete components.

Disadvantages of RF Front End Modules

Here are some drawbacks to consider when using RF Front End Modules:

1. Integrated modules might not offer the same level of flexibility and customization as discrete components. This can be a limitation for specific applications with unique requirements.
2. High levels of integration can lead to increased heat generation within the module, posing challenges in thermal management, especially in compact devices.
3. High integration can sometimes lead to interference between closely packed components within the module, affecting overall signal performance if not properly managed.
4. Device manufacturers may become dependent on specific module vendors for their RF front-end solutions, which can limit design options and increase reliance on third-party support.
5. While integrated modules are designed for general use, they may not achieve the absolute best performance possible in highly specialized applications, where discrete component solutions can be more finely tuned.

Conclusion

Overall, RF front-end modules are essential for modern wireless communication devices. They provide a compact, efficient, and high-performance solution for managing RF signals. However, their integration and design must be carefully considered to balance performance, cost, and flexibility based on the specific needs of the application.
