Multilateration is a positioning technique that determines the location of an object by measuring the Time Difference of Arrival (TDOA) of signals emitted from the object to multiple known receiver locations. It calculates the position based on the differences in the time it takes for the signals to reach different receivers.

Multilateration Working Principle

Let’s delve into how the multilateration method actually works:

  • Signal Emission: The target object emits a signal that is detected by multiple receivers at known locations.
  • Time Difference Measurement: Each receiver records the exact time the signal arrives.
  • TDOA Calculation: The Time Differences of Arrival (TDOA) between pairs of receivers are calculated.
  • Position Calculation: Using the TDOA data, the system calculates the position of the object by solving a set of hyperbolic equations that describe the differences in distance to each receiver.

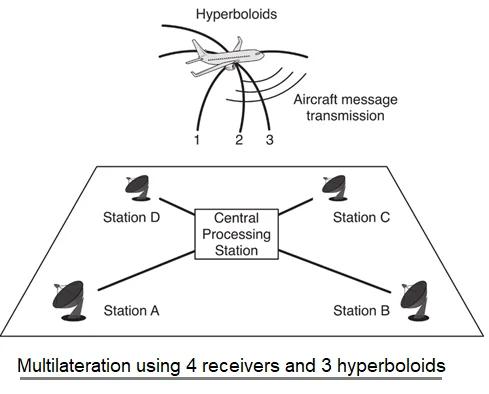

Multilateration Positioning Method

Multilateration Applications

Multilateration finds use in a variety of applications, including:

  1. Air Traffic Control (ATC): Used to track aircraft positions by measuring the time difference of signals sent from aircraft transponders to ground stations.
  2. Maritime Navigation: Helps in locating ships and boats by measuring signals from transponders to multiple coastal stations.
  3. Cellular Networks: Enhances location-based services (LBS) by using signals from mobile devices to multiple cell towers.
  4. Surveillance and Security: Tracks the position of moving objects or individuals in secured areas.
  5. Emergency Services: Assists in locating emergency signals, such as distress beacons, by measuring TDOA from multiple receivers.

Advantages of Multilateration

Here are some benefits of using multilateration:

  1. This technique can provide highly accurate positioning, especially in environments with a well-established network of receivers.
  2. There is no need for having synchronized transmitters in Multilateration. Only the receivers need to be synchronized, which is often easier to achieve than synchronizing multiple transmitters.
  3. It is scalable. The accuracy and reliability of the system can be improved by adding more receivers, making it highly scalable.
  4. Multilateration can be applied to both two-dimensional (2D) and three-dimensional (3D) positioning scenarios, making it versatile.

Disadvantages of Multilateration

Like any technique, multilateration also has its drawbacks:

  1. Accurate time synchronization among all receivers is critical and can be complex.
  2. Multilateration can be affected by multipath propagation and signal interference, especially in urban or indoor environments.
  3. A network of synchronized receivers must be deployed and maintained, which can be expensive and logistically challenging.
  4. The method relies on the speed of signal propagation being constant, which can be affected by environmental factors such as atmospheric conditions.
  5. Solving the hyperbolic equations for position calculation requires significant computational resources, especially in real-time applications.

Conclusion

Multilateration is a powerful and precise positioning method with significant applications in aviation, maritime navigation, cellular networks, and security. While it offers high accuracy and scalability, it also requires careful synchronization of receivers and robust infrastructure, making it best suited for environments where these requirements can be met.
