Triangulation vs. Trilateration: Understanding the Key Differences

triangulation
trilateration
positioning
navigation
geolocation

Both triangulation and trilateration have evolved from historical and mathematical foundations into vital techniques in modern geolocation and navigation systems.

Triangulation’s reliance on angular measurements and trigonometric principles makes it ideal for surveying and military applications. Trilateration’s dependence on distance measurements has made it integral to technologies like GPS and cellular network positioning.

Let’s understand how triangulation and trilateration differ with respect to various comparison parameters. Understanding the advantages and disadvantages of each method allows for their appropriate application in various positioning and navigation contexts.

What is Triangulation?

Triangulation is a positioning method used to determine the location of a point by measuring angles from known reference points. This technique is commonly used in navigation, surveying, and geolocation.

Working Principle

It can be explained in the following steps:

  1. Three known reference points (A, B, and C) are required. These points have known coordinates.
  2. The angles between the target point and each pair of reference points are measured.
  3. The lines drawn from the reference points at the measured angles will intersect at the target point. This intersection determines the location of the target.

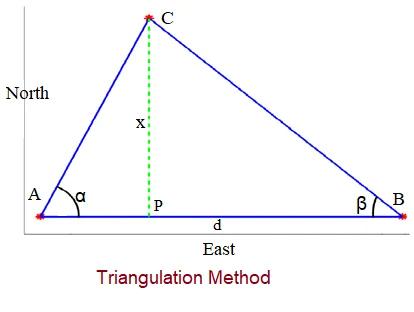

Triangulation Positioning Method

Advantages of Triangulation

  • Accuracy: High accuracy in determining locations if angles are measured precisely.
  • Reliability: Well-established and widely used method in various fields.

Disadvantages of Triangulation

  • Complexity: Requires precise angle measurements and multiple reference points.
  • Environmental Factors: Physical obstructions can affect angle measurements.

What is Trilateration?

Trilateration is a positioning method that determines the location of a point by measuring distances from known reference points. Unlike triangulation, it does not rely on angle measurements but on distance calculations.

Working Principle

It can be explained in the following steps:

  1. Three or more known reference points (A, B, and C) with known coordinates are required.
  2. The distances from the target point to each of the reference points are measured.
  3. Circles (or spheres in 3D space) are drawn around each reference point with radii equal to the measured distances. The intersection of these circles determines the target point’s location.

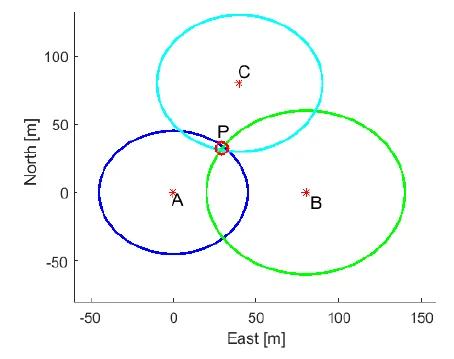

Trilateration Positioning Method

Advantages of Trilateration

  • Simplicity: Easier to implement as it relies on distance measurements rather than angle measurements.
  • Robustness: Less affected by environmental factors compared to triangulation.

Disadvantages of Trilateration

  • Accuracy: Can be less accurate if distance measurements are not precise.
  • Coverage: Requires a sufficient number of reference points to ensure accurate location determination.

Difference between Triangulation and Trilateration

The following table compares triangulation vs. trilateration with respect to various parameters.

FeaturesTriangulationTrilateration
DefinitionDetermines location by measuring angles from known pointsDetermines location by measuring distances from known points
Methodology and basisUses angles and one baseline distance to form triangles, involving trianglesUses distances to draw circles/spheres to find intersection points.
Measurement requiredAngles and one known distanceDistances from three or more known points
Accuracy dependencyPrecision of angle measurements and baseline distancePrecision of distance measurements
Susceptibility to ErrorsHigher due to angle measurement inaccuraciesLower, more robust against measurement errors
Equipment NeededTheodolites, compasses, angle-measuring instrumentsGPS receivers, distance sensors, signal strength devices
Implementation ComplexityComplex due to angle measurements and calculationsSimpler due to straightforward distance measurements
Environment SuitabilityEffective with direct line of sight (LOS) for angle measurementsVersatile, works in both indoor and outdoor environments
ExamplesSurveying land with theodolites, measuring star distancesGPS navigation, Wi-Fi-based indoor localization
Common applicationsLand surveying, astronomy, certain navigation systemsGPS, Wi-Fi, and Bluetooth indoor positioning

Conclusion

Triangulation and trilateration are both essential positioning methods, each with unique advantages and limitations. Triangulation relies on angular measurements and is highly effective in certain scenarios like land surveying and astronomy. In contrast, trilateration depends on distance measurements and is widely used in modern navigation systems such as GPS and indoor positioning systems due to its robustness and versatility.
