Intermediate Frequency (IF) in RF Systems: Advantages and Disadvantages

This page covers the advantages and disadvantages of using Intermediate Frequency (IF) in an RF system. It details the benefits and drawbacks of employing an intermediate frequency.

What is Intermediate Frequency (IF)?

Introduction: IF, or Intermediate Frequency, refers to a frequency that lies between the baseband frequency and the carrier frequency on the frequency spectrum. The technique of using an IF is common in both RF transmitters and receivers for various reasons.

Image: Up Down conversion using RF mixer

The figure above illustrates the use of IF in an RF Transmitter (up converter) and an RF Receiver (down converter). As shown, the IF frequency is fed to an RF Mixer for up-conversion using a Local Oscillator (LO) frequency. An RF Band Pass Filter (BPF) is used to filter out undesired frequencies and pass the desired frequencies within the passband. An RF Power Amplifier (PA) amplifies the signal before it is transmitted.

In an RF receiver, the signal first passes through a Low Noise Amplifier (LNA) and then is fed to an RF mixer. The RF mixer converts the RF frequency to an IF frequency. This IF frequency is then filtered through an IF BPF before being converted into a baseband I/Q signal. Essentially, the received high-frequency spectrum is converted to a lower-frequency spectrum centered around the intermediate frequency.

Different Types of RF Receivers

There are three main types of RF receivers:

• Homodyne receiver
• Heterodyne receiver
• Superheterodyne receiver

Homodyne Receiver

Image: homodyne receiver

In a “homodyne” receiver, the modulated RF signal is directly converted to baseband I/Q at zero frequency, or baseband frequency. RF mixers are not used in this architecture.

Heterodyne Receiver

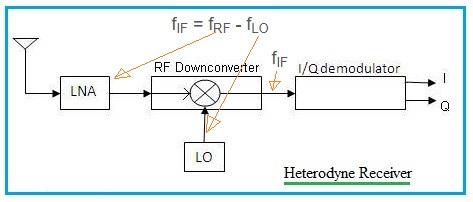

Image: Heterodyne receiver

In a “heterodyne” receiver, the modulated RF signal is converted into a modulated IF using a single mixer conversion stage. This modulated IF signal is then passed to an I/Q demodulator to extract the information at the baseband frequency.

Superheterodyne Receiver

Image: super heterodyne receiver

In a “superheterodyne” receiver, the modulated RF signal is converted into a modulated IF using a double mixer conversion stage. First, RF is converted to fIF1 using RF Mixer #1, and then fIF1 is converted to fIF2. The modulated IF signal at fIF2 is then given to an I/Q demodulator to extract the information at the baseband frequency.

Benefits or Advantages of Intermediate Frequency (IF)

Here are some benefits of using an Intermediate Frequency (IF):

• Cost-Effective Components: RF components are generally less expensive at lower intermediate frequencies compared to higher radio frequencies.
• Simplified Receiver Design: Using an IF converts multiple RF carriers into a single IF signal, simplifying receiver design and reducing the number of RF components needed.
• Easier Filtering: Filtering an IF signal is easier than filtering an RF signal because it requires a lower Q-factor due to the reduction in carrier frequency.
• Improved Sensitivity: Receivers using an IF approach often offer better sensitivity than zero-IF receiver architectures.
• Image Noise Prevention: The superheterodyne receiver architecture prevents image noise foldover due to the use of two IF frequencies before converting to the baseband frequency.
• Reduced I/Q Imbalance Errors: Mismatches in amplitude and phase of I/Q signals can lead to errors in demodulated data. This is more pronounced in non-IF architectures due to I/Q separation at higher frequencies in the I/Q demodulator. Using an IF stage mitigates this.

Drawbacks or Disadvantages of Intermediate Frequency (IF)

Here are some drawbacks of using an Intermediate Frequency (IF):

• Increased Cost: The use of IF can make RF transmitters and receivers more expensive. This is due to the requirement of RF mixers, local oscillators (LOs), and band-pass filters (BPFs) at various stages.
• Requirement of Local Oscillators: LOs are needed to feed one of the inputs of the RF Mixers used for frequency conversion.
• LO Leakage & Image Frequencies: RF transceivers designed with an IF approach often need filters to block LO leakage and prevent image frequencies in specific designs. This further increases the cost of IF-based transmitters and receivers.
