RF vs IF: Understanding the Difference Between RF and IF Signals

radio frequency
intermediate frequency
rf signal
signal processing
rf mixer

RF vs IF is a common topic in communication engineering. RF (Radio Frequency) covers high frequency signals for transmission, while IF (Intermediate Frequency) bridges RF and baseband processing by lowering the frequency for better signal handling.

This guide discusses the difference between RF and IF, highlighting their unique roles and applications in signal transmission systems. RF and IF are terms commonly used in the context of radio communication and signal processing, especially in the design of radio receivers.

IF to RF and RF to IF conversion can be done using a device called RF mixer. The same conversion can be achieved by way of single conversion or dual conversion.

Radio Frequency (RF)

Definition: RF refers to the range of electromagnetic frequencies associated with radio wave propagation. This range typically spans from a few kilohertz (kHz) to several gigahertz (GHz).

Purpose: In the context of radio communication, RF is used to transmit and receive signals wirelessly. RF signals are used for various purposes, including broadcasting, wireless communication, radar systems, and more.

Intermediate Frequency (IF)

Definition: IF is an intermediate frequency used in the signal processing chain of a radio receiver. It is an intentionally chosen frequency that is different from both the RF and the audio frequencies.

Purpose: The use of IF in a radio receiver provides several advantages. It helps to improve selectivity, sensitivity, and ease of amplification of the incoming signal. The process of converting the RF signal to a lower IF simplifies the design of the receiver, making it more manageable and cost-effective.

Following table mentions intermediate frequencies(IF) typically used for different applications such as RF test Equipments, Radar, Satellite equipments, microwave equipments, AM/FM radio, television(TV) etc.

Type of applicationIntermediate Frequency value
RF test equipments21.4MHz, 160MHz, 310.7MHz
Radar30MHz
Satellite Equipments70MHz for C band up converter and down converter; 140MHz for Ku Band; 950 to 1450MHz for L Band Equipments and Systems
Microwave Equipments70MHz, 75MHz, 250MHz
AM Radio(Values are in KHz)450, 455, 460, 465, 467, 470, 475, 480
FM Radio262KHz, 455KHz, 1.6MHz, 5.5MHz, 10.7MHz, 10.8MHz, 11.2MHz, 11.7MHz, 11.8MHz, 21.4MHz, 75MHz, 98MHz.
Analog Television41.25MHz for audio and 45.75MHz for video in TV system M; 33.4MHz(Aural) and 38.9MHz(Visual) in TV system B
Broadcast Receiver110KHz

Table-1 IF values for different applications

Up Converter and Down Converter using RF Mixer

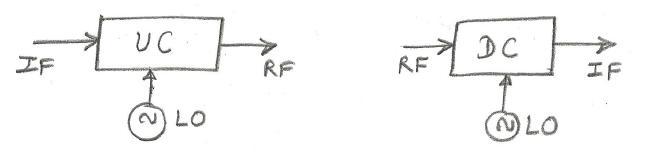

IF to RF conversion is achieved using a RF device called Up converter (“UC”). Similarly RF to IF conversion is achieved using RF device called Down converter (“DC”).

RF vs IF

Heterodyne and homodyne receiver architectures are used to convert modulated RF signal to IF signal. Superheterodyne uses 10.7MHz as first IF and 470KHz as second IF.

Up Down conversion using RF mixer

The figure-2 depicts use of RF mixer for up/down conversion.

RF to IF conversion

Following are the signal processing steps involved at receiver for RF to IF conversion and voice/data recovery.

  1. The incoming RF signal is mixed with a local oscillator (LO) frequency to produce the IF signal. This process is also known as downconversion.
  2. The IF signal is then processed through filters and amplifiers to enhance the desired signal and reject unwanted frequencies.
  3. The final stage involves demodulating the IF signal to recover the original audio or data signal.

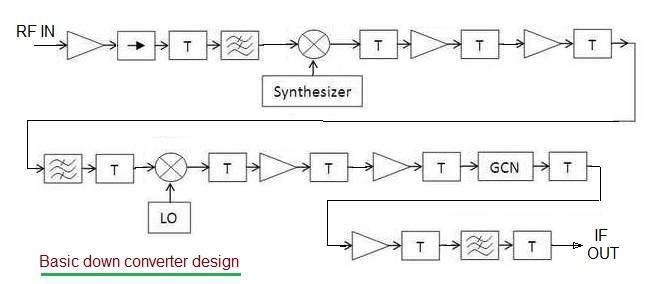

RF down converter block diagram

IF to RF conversion

Following are the steps involved at transmitter for IF to RF conversion for transmission of voice/data into the air using antenna.

  1. Incoming modulated IF from modem is mixed with a LO to produce RF signal. This process is also known as upconversion.
  2. RF signal is the processed through filters (BPF) and amplifiers to enhance desired signal and reject unwanted frequencies.
  3. The amplified RF signal is passed through power amplifier (PA) before transmission into the air using RF antenna.

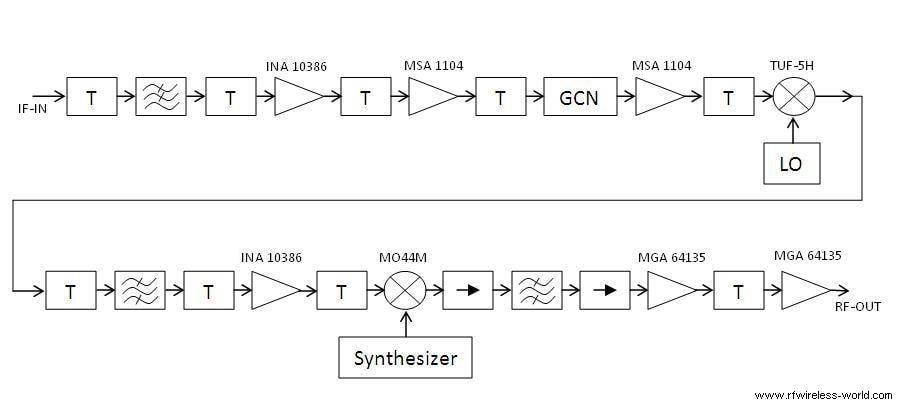

RF frequency converter BD

The circuit consists of discrete rf components such as RF mixers, rf filters, rf isolators, chip resistors and capacitors, MMICs etc.

Difference between RF and IF

FeatureRF (Radio Frequency)IF (Intermediate Frequency)
Frequency rangeBroad range, 3 kHz to 300 GHzSpecific frequency, chosen within the receiver, as shown in table-1.
Key roleEnables wireless signal transmission.Acts as an intermediary stage to process signals before final demodulation.
Signal manipulationCarries information for transmissionSignal is down converted for processing
Frequency conversionNo intentional conversion required at RF stageRF signal is mixed with LO to produce IF (Intermediate Frequency)
Original signalTransmitted or received at the RF frequencyDownconverted to IF before further processing
BandwidthVaries widely depending on the application.Narrower and standardized bandwidth for efficient filtering and amplification.
LossesHigher losses due to propagation over long distances.Lower losses as signals are processed locally within devices.
ComponentsIncludes antennas, RF amplifiers, and RF filters.Includes mixers, oscillators, and IF amplifiers.
Energy ConsumptionRequires more power for high frequency transmission.Consumes less power compared to RF.

Conclusion

Understanding the difference between RF and IF reveals their complementary functions. RF handles high frequency wireless communication, while IF simplifies signal processing. Together, they ensure seamless and efficient communication systems.

RF refers to the broader range of frequencies used in radio communication, while IF is a specific frequency intentionally chosen within the receiver’s signal processing chain to enhance performance and simplify the overall design. The use of IF allows for effective manipulation and processing of signals before the final demodulation stage.
