Analog and digital RF communication both rely on the fundamental principles of radio frequency (RF) signals for wireless transmission.
Both methods involve the propagation of electromagnetic (EM) waves through the air, as well as other transport mediums like PCB traces and cables. For wireless communication, antennas are used for signal transmission and reception.
Both analog and digital RF systems employ modulation techniques to encode information onto carrier waves, though they differ in the specific methods used. Let’s compare analog RF versus digital RF communication and explore the differences between these two approaches, looking at modulation types, signal quality, encoding techniques, and more.
Analog RF Communication
Analog RF (Radio Frequency) refers to a method of transmitting information using continuous, varying electrical signals. In RF communication, analog signals are characterized by continuously changing amplitudes, frequencies, or phases. These variations in the signal reflect the variations in the original information being transmitted, such as voice or music.
Key characteristics of analog RF communication:
- Analog RF signals are represented by continuous waveforms, where the amplitude, frequency, or phase of the signal varies smoothly over time.
- Analog modulation techniques, such as Amplitude Modulation (AM), Frequency Modulation (FM), and Phase Modulation (PM), are commonly used to encode information onto the RF carrier wave. In AM, the amplitude of the carrier wave varies with the audio signal. In FM, the frequency of the carrier wave is modulated. In PM, the phase of the carrier wave is modulated.
- Analog signals are susceptible to noise and interference during transmission, which can lead to a degradation in signal quality. This sensitivity to noise is a significant drawback of analog communication systems.
Example Applications:
Analog RF communication has historically been used in applications such as traditional AM and FM radio broadcasting, analog television, and certain types of two-way radio systems.
Digital RF Communication
Digital RF (Radio Frequency) refers to the transmission of information using discrete, binary signals rather than continuous analog waveforms. In digital RF communication, data is represented in the form of digital bits (0s and 1s), and sophisticated modulation techniques are employed to encode these bits onto the RF carrier wave.
Key characteristics of digital RF communication:
- Information is represented using a series of discrete binary values, typically in the form of 0s and 1s. Each bit represents a distinct unit of information.
- Digital modulation methods, such as Amplitude Shift Keying (ASK), Frequency Shift Keying (FSK), Phase Shift Keying (PSK), Quadrature Amplitude Modulation (QAM), Quadrature Phase Shift Keying (QPSK), Binary Phase Shift Keying (BPSK), and QAM variants (16QAM, 64QAM, 256QAM, 1024QAM), are used to encode the digital information onto the RF carrier wave.
- Digital signals are more resilient to noise and interference compared to analog signals. Error detection and correction mechanisms can be implemented to ensure accurate signal reconstruction at the receiver. Moreover, error correction techniques (Convolutional encoding, turbo encoding) help to enhance the robustness of data transmission and reception.
- Digital RF communication is often more bandwidth-efficient, allowing for higher data rates and the transmission of multiple signals in the same frequency spectrum.
Example Applications:
Digital RF communication is widely used in modern wireless technologies, including digital television broadcasting, mobile cellular networks, Wi-Fi, satellite communication, and many other data-intensive applications.
Difference Between Analog RF Communication and Digital RF Communication
Let’s examine the differences between analog and digital RF communication methods, focusing on signal representation, modulation techniques, signal quality, bandwidth usage, and information encoding.
| Features | Analog RF Communication | Digital RF Communication |
|---|---|---|
| Source signal representation | Continuous signals | Discrete binary signals |
| Modulation techniques | Analog modulation (e.g., AM, FM, PM) | Digital modulation (e.g., ASK, FSK, PSK, QPSK, QAM variants such as 16QAM, 64QAM, 256QAM, 1024QAM etc.) |
| Noise | Prone to noise, potential degradation | More resilient to noise, accurate reconstruction |
| Signal quality | Poor, due to potential degradation | Better, due to accurate reconstruction |
| Bandwidth usage | Typically requires more bandwidth | More bandwidth efficient |
| Data rates | Less, as analog modulation schemes cannot represent multi-levels | Higher, can be achieved due to multi-level modulation schemes such as QPSK,QAM etc. |
| Information encoding | Continuous representation, infinite values | Discrete representation, finite values |
| Error correction module | Not available | Available, FEC techniques such as convolutional encoding, CTC encoder etc. |

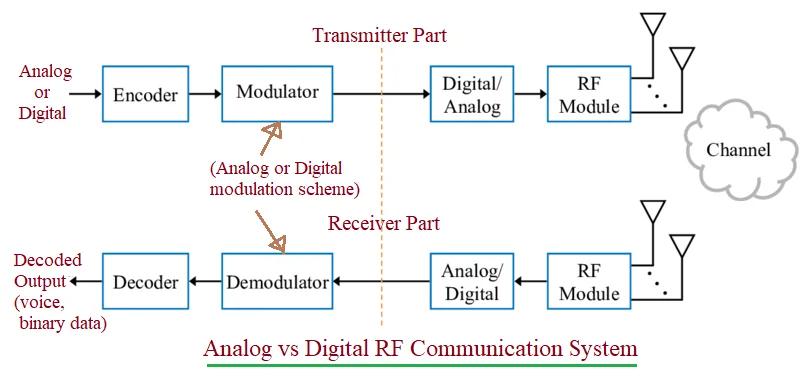

| ADC/DAC modules | Not required, as everything is analog | Required as shown in the figure |
| Examples | Analog radio broadcasting | Digital TV, WiFi, cellular mobile networks |
Conclusion
In summary, analog RF communication uses continuous signals, while digital RF communication employs discrete binary signals. Digital RF communication has become increasingly prevalent due to its advantages in terms of signal quality, bandwidth efficiency, error correction, and the ability to implement advanced features. While certain applications, such as traditional radio broadcasting, may still use analog RF, many modern wireless communication systems, such as WiMAX, WiFi (11ax), 4G LTE, and 5G-NR, have transitioned to digital RF for improved performance and versatility.
