CAN stands for Controller Area Network. It’s a communication protocol and bus standard widely used in automotive and industrial applications. Its primary function is to facilitate reliable and efficient communication between electronic control units (ECUs) in vehicles and various other devices.

CAN operates as a serial communication protocol, utilizing a differential two-wire bus for data transmission. It’s known for its high data transfer rates, robustness, and fault tolerance, making it well-suited for the often challenging and noisy environments of vehicles and industrial settings. Over time, various versions of CAN have been developed, including classical CAN, CAN-FD, and CAN-XL.

How CAN Bus Works

As mentioned, CAN is a serial communication protocol employing a two-wire bus.

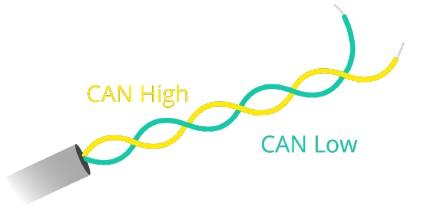

The CAN bus comprises two wires: CAN High (CAN-H) and CAN Low (CAN-L). These wires are used to transmit and receive data. CAN bus uses a differential signaling method, where the voltage difference between CANH and CANL wires determines the logic state of the signal. Because of this setup, it’s highly resistant to electromagnetic noise; any interference affects both wires equally, and the receiving end measures the voltage difference.

CAN bus

Data on the CAN bus is organized into frames. A CAN frame contains the following fields:

CAN frame = { Start of frame (SOF) , Arbitration field, control field, data field, CRC, ACK, End of frame (EOF) }

Messages on the CAN bus are broadcast to all nodes on the bus. Each ECU on the bus reads every message but only processes the messages with message IDs that it’s programmed to respond to. This allows multiple ECUs to communicate with each other without the need for point-to-point connections.

CAN Bus Error Frame

In a Controller Area Network (CAN) bus system, error frames, also known as Error Frames (EF), are a specific type of message frame used to signal and handle errors on the bus.

Error frames aren’t typical data frames carrying information from one electronic control unit (ECU) to another. Instead, they serve to notify all nodes on the CAN bus about an error condition. Error frames are part of the CAN error handling mechanism and are used to ensure the reliability and robustness of the communication system.

An error frame has a specific format that distinguishes it from regular data frames. It includes a special bit pattern in the message identifier (ID) and error flags in the control field. This special format signals to all nodes that it’s an error frame.

What are CAN Bus Errors and its Types

Controller Area Network (CAN) bus systems are designed to be robust and reliable, but errors can still occur due to various factors. These errors can affect the communication and operation of electronic control units (ECUs) and devices on the CAN bus.

CAN bus systems have mechanisms in place to detect and handle these errors to ensure reliable and robust communication. Here are some common types of CAN bus errors:

Some of the common CAN bus errors are as follows.

  • Bit Errors: Bit errors occur when there’s a discrepancy between the transmitted and received bits in a message. This can happen due to electrical noise or interference on the bus, which can cause a bit to be read incorrectly.

  • Frame Errors: Frame errors occur when a message isn’t correctly framed, typically because of issues with the start-of-frame (SOF) or end-of-frame (EOF) bits. This can be caused by signal integrity problems or other issues with the physical layer of the CAN bus.

  • Stuff Errors: Stuff errors occur when there are too many or too few bits with the same value (either ‘0’ or ‘1’) in succession within a message frame. These errors can result from noise or interference on the bus.

  • Acknowledgment Errors: In a CAN bus system, the receiving ECU is expected to send an acknowledgment bit after receiving a message. If the transmitting ECU doesn’t receive an acknowledgment, it may consider the message as not successfully transmitted.

  • Form Errors: Form errors happen when a message frame doesn’t follow the expected format or structure, such as having an incorrect number of bits in a frame. This can be due to issues with the message formatting.

  • CRC Errors: The cyclic redundancy check (CRC) field in a CAN message is used to ensure data integrity. CRC errors occur when the calculated CRC value at the receiver doesn’t match the one sent by the transmitter, indicating a data corruption issue.

  • Bus Off: A bus-off error occurs when an ECU or device repeatedly fails to transmit messages correctly and exceeds a predefined error threshold. In response to a bus-off error, the malfunctioning ECU is temporarily disconnected from the bus to prevent further disruption.

  • Error Passive: An ECU goes into an error passive state when it detects errors but hasn’t exceeded the bus-off threshold. In this state, the ECU continues to monitor the bus but doesn’t actively participate in communication until it recovers from the error condition.

  • Overload Frame Errors: Overload frames are used to indicate that the bus is overloaded with messages. Overload frame errors can occur if the bus is overwhelmed with traffic.

Conclusion

Proper error handling and recovery mechanisms are essential to maintaining the reliability and fault tolerance of a CAN bus system. These mechanisms ensure that errors are detected, reported, and managed, helping to prevent corrupted or invalid data from impacting the overall functionality of the network.

The specific error-handling strategy and recovery procedures may vary depending on the CAN protocol version and the configuration of the CAN bus system.
