MPPT Solar Controllers: Advantages and Disadvantages

solar controller
mppt
solar panel
power optimization
efficiency

This article explores the pros and cons of MPPT (Maximum Power Point Tracking) solar charge controllers.

Introduction

There are primarily two types of solar charge controllers available: PWM (Pulse Width Modulation) and MPPT. These controllers are essential for managing the flow of current from solar panels to batteries, preventing overcharging and deep discharge.

What is an MPPT Solar Controller?

MPPT refers to the optimal ratio of current (I) to voltage (V) on a photovoltaic (PV) panel’s power curve that yields the maximum power output. This optimal point shifts depending on irradiation conditions.

As shown in Figure 1, MPPT controllers indirectly connect the PV panel and battery, functioning as a DC-to-DC voltage converter. They are particularly useful when the battery voltage is lower than the PV panel array output.

MPPT technology leverages the excess PV voltage from the solar array to generate additional current at a lower voltage without sacrificing power, thus boosting the overall efficiency of the solar system.

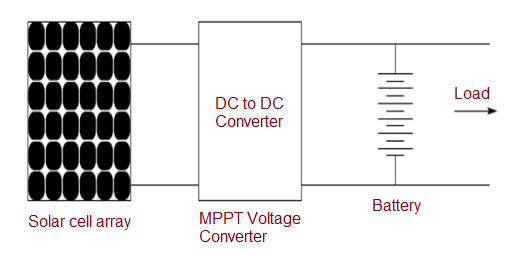

MPPT solar charge controller

Figure 1: MPPT solar charge controller

DC-to-DC converters come in two main types: buck converters (for stepping down voltage) and boost converters (for stepping up voltage). Buck converters are employed when the output voltage needs to be lower than the input voltage.

Here are some typical specifications for a Luminous MPPT solar charge controller:

  • Model: Solar PCU - NXT+ 3.75 KVA
  • Maximum panel power supported: 3000 Wp
  • Maximum power voltage Vmp (V): 65 to 130 V
  • Nominal battery bank voltage: 48 V
  • Input voltage Range (Voc): 80 V to 165 V
  • VA rating: 3.75 KVA

Benefits or Advantages of MPPT Solar Controllers

  • Higher Efficiency: MPPT controllers are more efficient compared to PWM controllers.
  • Voltage Optimization: They can optimize voltage differences and provide DC load optimization.
  • Ideal for Larger Systems: They are particularly well-suited for larger systems where the solar panel output significantly exceeds the battery voltage.
  • Increased Output: They offer more power output, resulting in higher amp capacity.

Drawbacks or Disadvantages of MPPT Solar Controllers

  • Higher Cost: MPPT controllers are typically two to three times more expensive than PWM controllers.
  • Larger Size: They tend to be larger, making them less convenient to handle.
  • Shorter Lifespan: Due to the increased number of electronic components and greater thermal stress, they may have a shorter lifespan.
