I2C vs RS485: A Detailed Comparison of Two Communication Protocols

i2c
rs485
communication protocol
interface
data

This article compares I2C and RS485, highlighting their distinct characteristics and applications. It also provides links for further reading on each interface protocol.

I2C Protocol

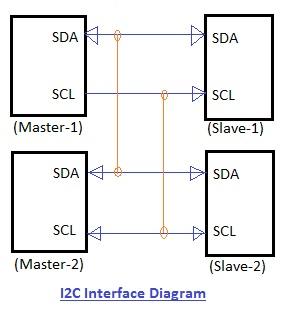

I2C

I2C (Inter-Integrated Circuit) is a communication protocol that enables one or more master devices to communicate with multiple slave devices on integrated circuits. Similar to SPI, it’s primarily used for short-distance communication within a single device. It requires only two signal lines for data exchange.

RS485 Protocol

RS485

RS485 is a predecessor to the RS422 interface. It’s a multi-drop and balanced interface that supports both half-duplex and full-duplex communication modes. In an RS485 network, a single device can control up to 32 other devices.

Binary data is represented as follows:

  • Logic 1: B > A by 1.5V (max.)
  • Logic 0: A > B by 1.5V (max.)

Here, A and B represent the two wires used in RS485 for transmitting and receiving data.

I2C vs RS485: Detailed Comparison

SpecificationsI2CRS485
DistanceShort distance protocol.Long distance protocol. Covers 50 feet (@10 Mbps) to 4000 feet (@100 Kbps).
ClockSends and receives data with respect to a clock signal.Sends and receives data without a clock signal.
SpeedSlower compared to RS485.Faster compared to I2C.
AddressingAutomatically increments the address for data storage.Manually assigns the address for data storage every time.
Multi-master communicationSupported.Not natively supported. RS485 typically operates in a single transmitter to multiple receiver mode.
Pin DesignationsUses SDA (Serial Data) and SCL (Serial Clock) lines.Uses two transmit (TxD+, TxD-) and two receive (RxD+ and RxD-) lines.
Data rateI2C supports 100 kbps, 400 kbps, 3.4 Mbps. Some variants also support 10 Kbps and 1 Mbps.100 Kbps to 10 Mbps
Type of communicationSynchronousAsynchronous
