I2C Advantages and Disadvantages: A Comprehensive Guide

i2c
communication protocol
serial data
hardware
interface

This page explores the pros and cons of I2C (Inter-Integrated Circuit) communication. It outlines the benefits and drawbacks of using I2C, and also provides a basic overview of the I2C interface itself.

What is I2C?

Introduction:

  • I2C stands for Inter-Integrated Circuit.
  • It utilizes only two lines for communication between multiple masters and multiple slaves: SDA (Serial Data) and SCL (Serial Clock).
  • I2C supports various data rates, with versions ranging from 100 Kbps to 400 Kbps, 1 Mbps, and even 3.4 Mbps.
  • It’s a synchronous communication protocol, similar to SPI but unlike UART. This means a common clock signal is shared between masters and slaves.
  • It employs start and stop bits, as well as an ACK bit, for every 8 bits of data transferred.
  • In an I2C interface, all masters can communicate with all slave devices.

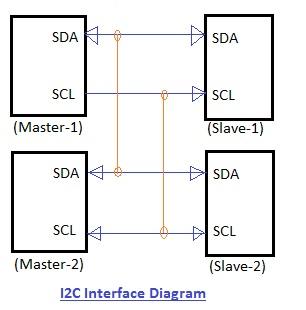

I2C interface diagram

I2C interface diagram

Benefits or Advantages of I2C

Here are the key benefits of using I2C:

  • Multiple Master Devices: The circuit can accommodate more than one master device.
  • Fewer Wires: I2C requires only two wires for communication, unlike SPI which needs four. This reduces the number of interconnections between ICs, leading to fewer pins and PCB tracks.
  • Smaller PCBs: Reduced wiring translates into smaller and less expensive PCBs.
  • Simplified Addressing: The addressing scheme is straightforward and doesn’t necessitate CS (Chip Select) lines for adding extra devices, unlike SPI.
  • Easy Expansion: Adding new devices to the bus is very simple.
  • Flexible Voltage: It employs an open collector bus design, allowing flexibility in voltage usage on the bus. Slew rates are also limited.
  • Flow Control: I2C incorporates flow control mechanisms.
  • Easy Debugging: Diagnosis and debugging are relatively easy, making it simple to trace any malfunctions.
  • Hot Swapping: ICs can be added or removed from the hardware without affecting other circuits on the bus.

Drawbacks or Disadvantages of I2C

Despite its advantages, I2C has some drawbacks:

  • Increased Hardware Complexity: The hardware becomes more complex as the number of master/slave devices increases in the circuit.
  • Half-Duplex Communication: It operates in half-duplex mode, meaning data can only be transmitted in one direction at a time.
  • Software Overhead: The protocol is managed by a software stack, which increases processing overhead on the microcontroller (µC) or microprocessor (µP).
