DMX vs. DALI: Key Differences in Lighting Control Systems
Advertisement
This article breaks down the differences between DMX and DALI lighting control systems, explaining how they work and highlighting their respective strengths. We’ll also touch on what constitutes a non-DALI luminaire. These systems are instrumental in modern smart lighting solutions, contributing significantly to energy conservation through dimming capabilities in various environments like buildings, offices, and theaters.
DMX Control: Centralized Lighting Management

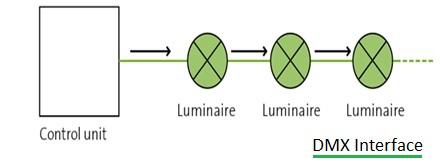

Figure 1: DMX Control System
As illustrated in Figure 1, DMX employs a central control unit to manage multiple lights or luminaires. This centralized architecture means a single control unit is responsible for overseeing the behavior of numerous lighting fixtures.
DMX control units communicate bidirectionally using RS485 or RS422 standards. Consequently, DMX units incorporate RS485/RS422 ICs to interface the control unit with multiple luminaires via differential two-wire connections, adhering to standard specifications. The multi-drop connection facilitated by RS485 or RS422 allows for a greater number of loads to be connected to a single control unit. This system is often used for RGB control, enabling dynamic color changes in LED lights as needed.
DALI Control: Decentralized and Flexible

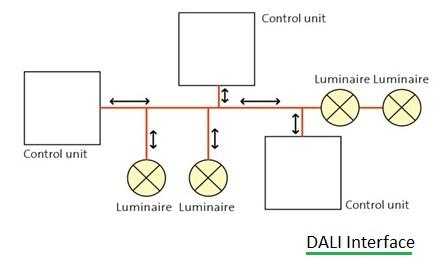

Figure 2: DALI Control System
DALI (Digital Addressable Lighting Interface), depicted in Figure 2, represents a decentralized control system. It allows for individual or broadcast control (up to 16 groups) of multiple control units. This non-proprietary standard is widely used for dimmable lighting control. Key features of DALI control include:
- Two-wire control line: Simplifies wiring and installation.
- Range: Maximum distance coverage of approximately 300 meters.
- Scalability: Up to 64 units can be connected to a single DALI control unit.
- Evolution: It’s a successor to older 0-10V lighting control systems.
- Standards Compliance: Defined by IEC 62386/IEC 60929 standards.
- Dimming Levels: Supports 254 brightness levels, from completely OFF to 100% ON.
Non-DALI Luminaires
Any luminaire or light that cannot be digitally addressed is classified as Non-DALI.
DMX vs. DALI: Key Differences Summarized
The following table highlights the core differences between DMX and DALI control systems:
Features | DMX control | DALI control |
---|---|---|
Full Form | Digital Multiplexing, abbreviation of DMX512 | Digital Addressable Lighting Interface |
Speed | Fast | Slow |
Number of addresses | 512 | 64 |
Multiple devices with the same address | Yes (It is possible to implement.) | Not possible |
Automatic addressing | No | Yes |
Centralized control | Yes (It is possible.) | No |
De-centralized control | No | Yes |
Cable length | 300m | 300m |
Cable requirement | Yes, Cat-5 | No |
End-of-line resistor | Yes | No |
