CAN interface

CAN is the short form of Controller Area Network. Its design allows devices to communicate with each other without needing a single host PC. It’s primarily targeted for microcontroller-based applications and is widely used in automotive, medical, and networking applications.

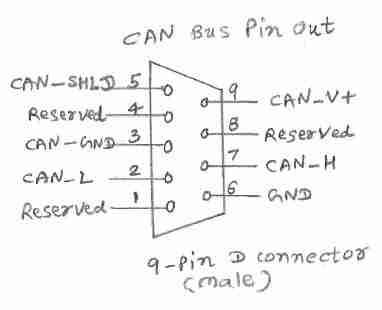

The CAN interface is used with a CAN bus, a differential 2-wire interface. Data communication over CAN uses NRZ encoding for bit encoding. It typically employs a 9-pin D-type male connector for all nodes to communicate on the CAN bus. The following figure and table outline the key aspects:

CAN Bus Pin Details

Signal NameDescriptionPin
ReservedFuture use1
CAN_LCAN dominant low signal2
CAN_GNDGround3
ReservedFuture use4
CAN_SHLDShield (Optional)5
GNDGround (Optional)6
CAN_HCAN dominant high signal7
ReservedFuture use8
CAN_V+Power (Optional)9
