This article explores the differences between CAN (Controller Area Network) and Ethernet, two communication protocols widely used in the automotive and industrial sectors.

Introduction:

Both CAN and Ethernet play crucial roles in modern communication systems. CAN is typically chosen for real-time and safety-critical applications, while Ethernet is often preferred for non-real-time applications. Both protocols support various network topologies and facilitate the transmission of data packets or frames, defining their structure, formatting, headers, payload, and error detection mechanisms. Over time, both CAN and Ethernet have evolved to meet the changing demands of the automotive and industrial sectors. Newer versions and enhancements, such as CAN FD (Flexible Data Rate) and Automotive Ethernet, have been developed to address increased data rates, bandwidth, and scalability needs.

What is CAN?

The CAN bus interface has undergone several evolutions and standardizations over the years. Here’s a brief overview:

  • CAN 2.0: Introduced in 1991 as ISO 11898-1, supporting a maximum data rate of 1 Mbps. It supports both standard CAN and extended CAN message formats.
  • CAN FD (Flexible Data Rate): Developed to support high data rate requirements while maintaining backward compatibility with CAN 2.0. CAN FD increases the maximum frame payload from 8 bytes to 64 bytes, enabling efficient data transfer, and is used in driver assistance systems and vehicle diagnostics testing.
  • CANopen: Provides communication and device management services, allowing interoperability between different devices from various manufacturers.
  • CiA (CAN in Automation): A non-profit association that promotes and supports the use of CAN protocols. They have developed CiA 402 for CAN-based motion control systems and CiA 447 for CAN-based lift control systems.

standard CAN frame format,standard CAN frame structure

extended CAN frame format, extended CAN frame structure

The standard CAN frame and extended CAN frame fields are shown above.

CAN is widely used in automotive, industrial, robotics, medical devices, and building automation applications.

What is Ethernet?

Ethernet is a ubiquitous networking technology with a history of significant evolution. Here are some key Ethernet standards:

  • Ethernet (IEEE 802.3): Defines the original Ethernet specifications, supporting a 10 Mbps data rate using coaxial cables and the CSMA/CD media access control method.
  • Fast Ethernet (IEEE 802.3u): Supports a 100 Mbps data rate using twisted pair and fiber optic cables.
  • Gigabit Ethernet (IEEE 802.3z, IEEE 802.3ab): Supports 1 Gbps data rates, utilizing both fiber optic and twisted pair cables.
  • 10 Gigabit Ethernet (IEEE 802.3ae): Supports 10 Gbps, primarily using fiber optic cables.
  • Ethernet in the First Mile or Last Mile (IEEE 802.3ah, 802.3av): Focuses on Ethernet access technologies, such as Ethernet over copper or PON (Passive Optical Network).
  • Automotive Ethernet (IEEE 802.3bw, 802.3bp, 802.3cg): Specifically designed for in-vehicle communication, enabling higher data rates (~100 Mbps and 1 Gbps) over single or multiple twisted pairs.

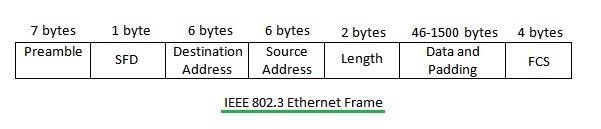

Ethernet frame

As illustrated above, an Ethernet frame comprises a preamble, Start Frame Delimiter (SFD), destination and source addresses, length, data, and FCS (Frame Check Sequence) fields.

Ethernet finds application in LANs, WANs, industrial automation, internet connectivity, video surveillance, and data centers. Its continuous evolution has made it a de facto standard for wired networking across various industries and applications.

Difference between CAN and Ethernet

While both CAN and Ethernet provide communication solutions, they differ significantly in terms of data rate, topology, distance coverage, communication mechanism, latency, error detection capability, interference resistance, and cost. The table below summarizes the key differences:

ParametersCANEthernet
CommunicationDesigned for short-range communication within a vehicleDesigned for local area network (LAN) communication, also used in the automotive domain.
Transmission MediumsTwisted pair wiringTwisted pair or fiber optic cables
BandwidthLimited bandwidth compared to EthernetHigher
Data RateUp to 1 Mbps (Typically)From 10 Mbps to multiple Gbps (Typically)
TopologyBus-based topologySupports Bus, Star, Ring, or Mesh topologies
Coverage DistanceUp to a few hundred metersUp to several kilometers (depending on the medium used)
Message LengthLimited, up to 8 bytes (Standard CAN) or up to 64 bytes (CAN FD)Larger, up to 1500 bytes in an Ethernet frame
Message PriorityUses prioritized message IDs for arbitrationDoes not have an inherent message priority mechanism
LatencyLowerHigher than CAN
Error DetectionBuilt-inRelies on TCP/IP for error detection and recovery
SecurityLacks built-in security featuresSupports security protocols and encryption methods.
Interference ResistanceResistant to EMI (Electromagnetic Interference)Susceptible to EMI, requiring appropriate shielding and grounding
CostRelatively lower cost compared to EthernetHigher than CAN; cost varies based on implementation and requirements
FlexibilityLimited flexibility for integration with other networksOffers greater flexibility for integration with various protocols and networks
ApplicationUsed in automotive systems (ECUs, sensors) for real-time and safety-critical applicationsUsed for infotainment, diagnostics, and non-critical applications; being explored for automotive systems
Standard SpecificationsBosch CAN version 2.0 (1991, 1997), Bosch CAN-FD version 1.0 (2012), ISO-11898-1 (2015)IEEE 802.3-2012 standard for Ethernet

Conclusion

Both CAN and Ethernet possess unique strengths that make them suitable for different applications within the automotive domain. CAN is preferred for its reliability, determinism, and suitability for real-time and safety-critical systems. Ethernet offers higher data rates, broader bandwidth, and compatibility with other network protocols, making it ideal for non-real-time applications, infotainment, and diagnostics in vehicles. The choice between CAN and Ethernet ultimately depends on specific requirements and the existing network infrastructure.
